Drive Plate With Roller Bearing

A/C Compressor



Drive Plate with Roller Bearing

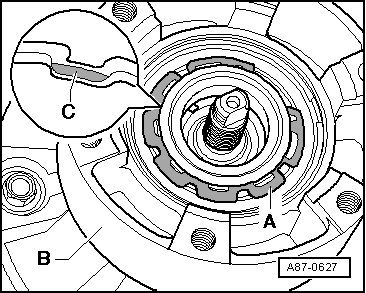

- Remove drive plate from compressor shaft. Refer to=> [ Drive Plate ].

- Remove circlip - A -.





- Remove drive plate - B -.

• Replace circlip - A -.

• Clean compressor flange before sliding on drive plate.

• When installing circlip - A -, note that it cannot be bent open more than is necessary for installation.

• Insert circlip - A - on proper side, the side with beveled insertion edge - C - faces away from compressor install flat side facing compressor.
