Trim Over Glove Compartment

Instrument Panel

Trim over Glove Compartment

Removing





- Switch off ignition and remove ignition key.

- Turn knurled wheel - 3 - for left air vent above glove compartment completely upward.

- Insert one watchmaker's screwdriver each - 1 - into air vent retaining clamps above the lower ventilation fin - 2 -.

- Pull air vent alternating on left and right side out of the installation opening, watchmaker's screwdrivers must remain inserted while doing this.

• Pull air vent out of installation opening using Hook (3438) if necessary.

- Disconnect electrical harness connector at air vent.

- Repeat procedure at right air vent, above glove compartment.

- Open coin tray.





- Slide coin tray panel toward the left out of catch - arrow - and remove.

- Open glove compartment.

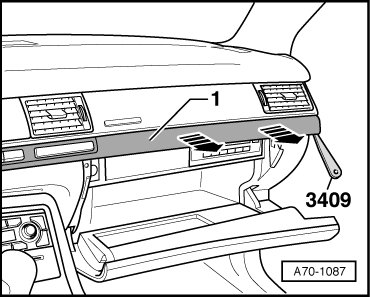

- Carefully disengage decorative panel - 1 - with switch strip - starting above the glove compartment - from instrument panel using trim removal wedge (3409).

- Pull off decorative panel with switch strip in - direction of arrow -.

• Be especially careful when releasing clip on the driver's side end of decorative panel.

- Disconnect electrical connector.

- Remove the coin tray.

- Remove bolts - arrows -.





- Remove panel - 1 - above glove compartment.

Installing





Installation is reverse of removal, noting the following:

- When inserting decorative panel - 1 - with switch strip, make sure that both catches in panel center are inserted between instrument panel and screen housing - arrows -.

Tightening torque:

Panel above glove compartment to instrument panel: 2.5 Nm
