Rear Interior Lamp Bulb, Through 08.07

Roof Trim Lamps and Switches

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Rear Interior Lamp Bulb, through 08.07

Special tools, testers and auxiliary items required

• Pry lever (80 - 200)

Removing

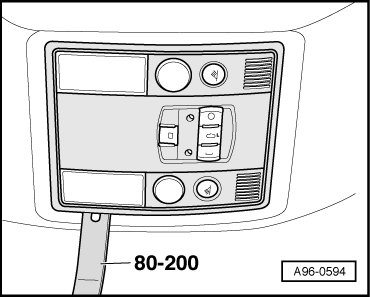

- Use (80 - 200) to carefully pry off cover of interior lamp/reading lamp as shown.

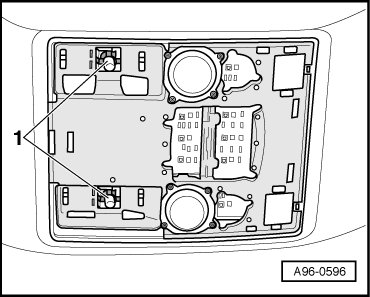

- Remove the glass socket lamp - 1 - (12V, 6 W) from the clamping socket.





Installing

Install in reverse order of removal, observing the following:

- Press on interior lamp cover until it engages.
