Side Turn Signal, through 08.07
Side Turn Signal, through 08.07
Removing
- Switch off ignition and remove ignition key.
- Unfasten and press aside rear section of front wheel housing liner in area of side turn signal indicator => Body Exterior 66 Removal and Installation.

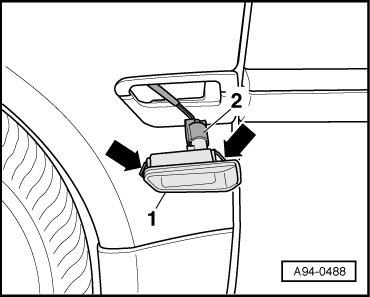

- Press down retainers - arrows - at turn signal indicator housing - 1 - and carefully take turn signal indicator out of opening in fender.
- Disconnect electrical connector - 2 -.
• Entire side-mounted turn signal indicator must be replaced if LED is faulty.
Installing
Install in reverse order.
