Carbon Brush Checking, Valeo Generator From 2001

Carbon Brush Checking, Valeo Generator from 2001

Procedure





- Remove the voltage regulator. Refer to => [ Voltage Regulator, Valeo Generator from 2001 ] Voltage Regulator, Valeo Generator From 2001.

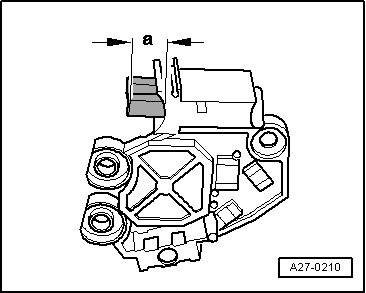

- Check the carbon brushes for length - a -.

• Wear limit: - a - = 5 mm.

- Install the voltage regulator. Refer to => [ Voltage Regulator, Valeo Generator from 2001 ] Voltage Regulator, Valeo Generator From 2001.
