Diagram 23/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

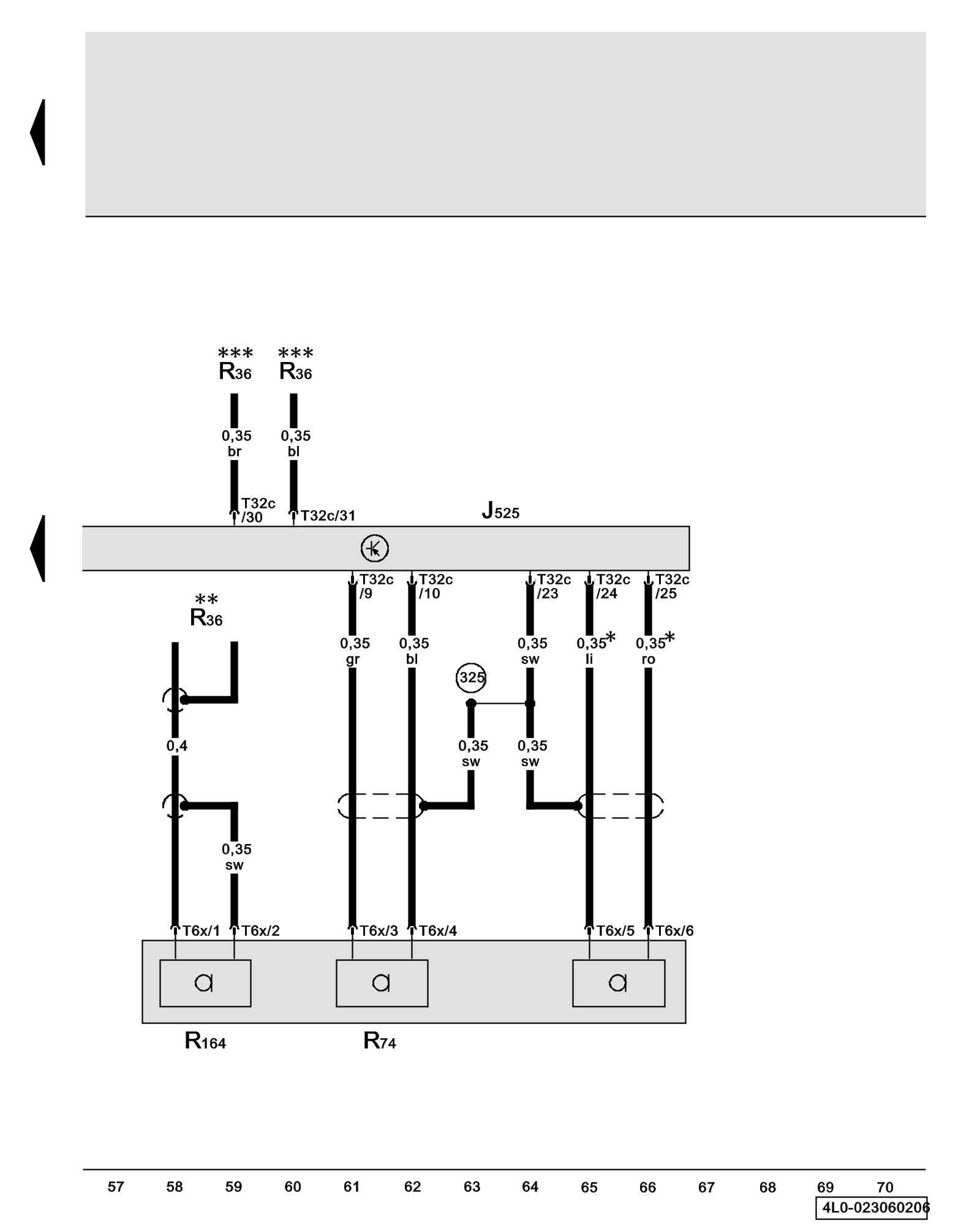

Digital Sound System Control Module, Microphone Unit (in front roof module), Inside Microphone





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital Sound System Control Module Component Locations

R36 - Telephone Transceiver Overview Of Control Modules

R74 - Inside Microphone Phone System Components Locations

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T32c - 32-Pin Connector, black, on digital sound system control module

(325) - Ground Connection (navigation shielding 2), in communications wiring harness

* - Models with voice control

** - Models with cellular telephone preparation, telephone

*** - Japan only

Previous Diagram 23/5 (Tracks 43-56)
