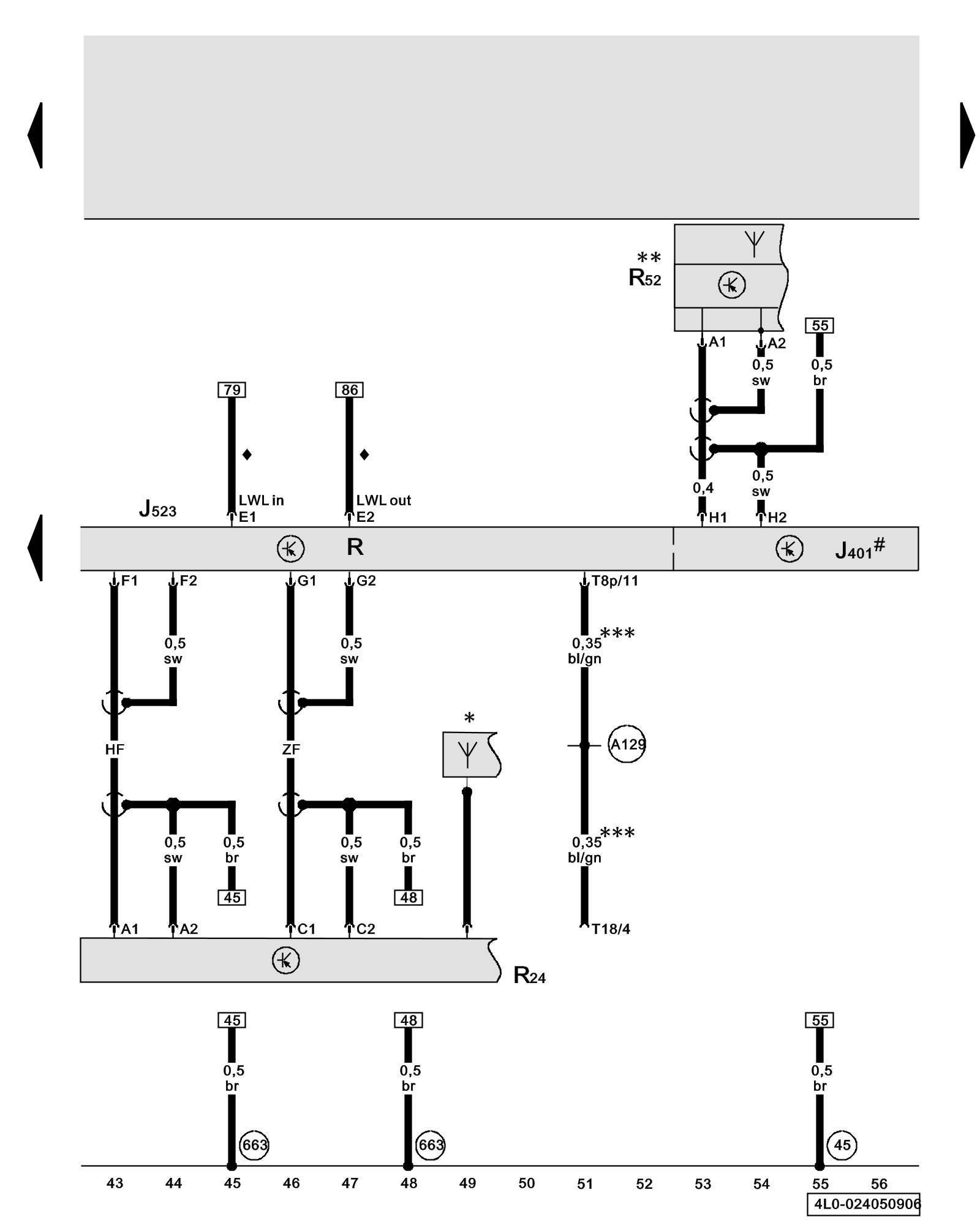

Diagram 24/5 (Tracks 43-56)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front Information Display Control Head Control Module, Antenna Amplifier, Antenna for Radio, Telephone, Navigation System





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Overview Of Control Modules

J523 - Front Information Display Control Head Control Module Component Locations

R - Radio Overview Of Control Modules

R24 - Antenna Amplifier Locations

R52 - Antenna for Radio, Telephone, Navigation System Locations

T8p - 8-Pin Connector, black (Connector D), on front information display control head control module

T18 - 18-Pin Connector, black, behind glove compartment

(45) - Ground Connection (behind instrument panel, center) Ground Locations

(663) - Ground Connection (in right rear side panel)

(A129) - Mute Connection (in instrument panel wiring harness)

* - Right Side Window Antenna

** - Roof Antenna

*** - Models with cellular telephone preparation (9ZD)

# - MMI basic plus Navigation

- FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)
