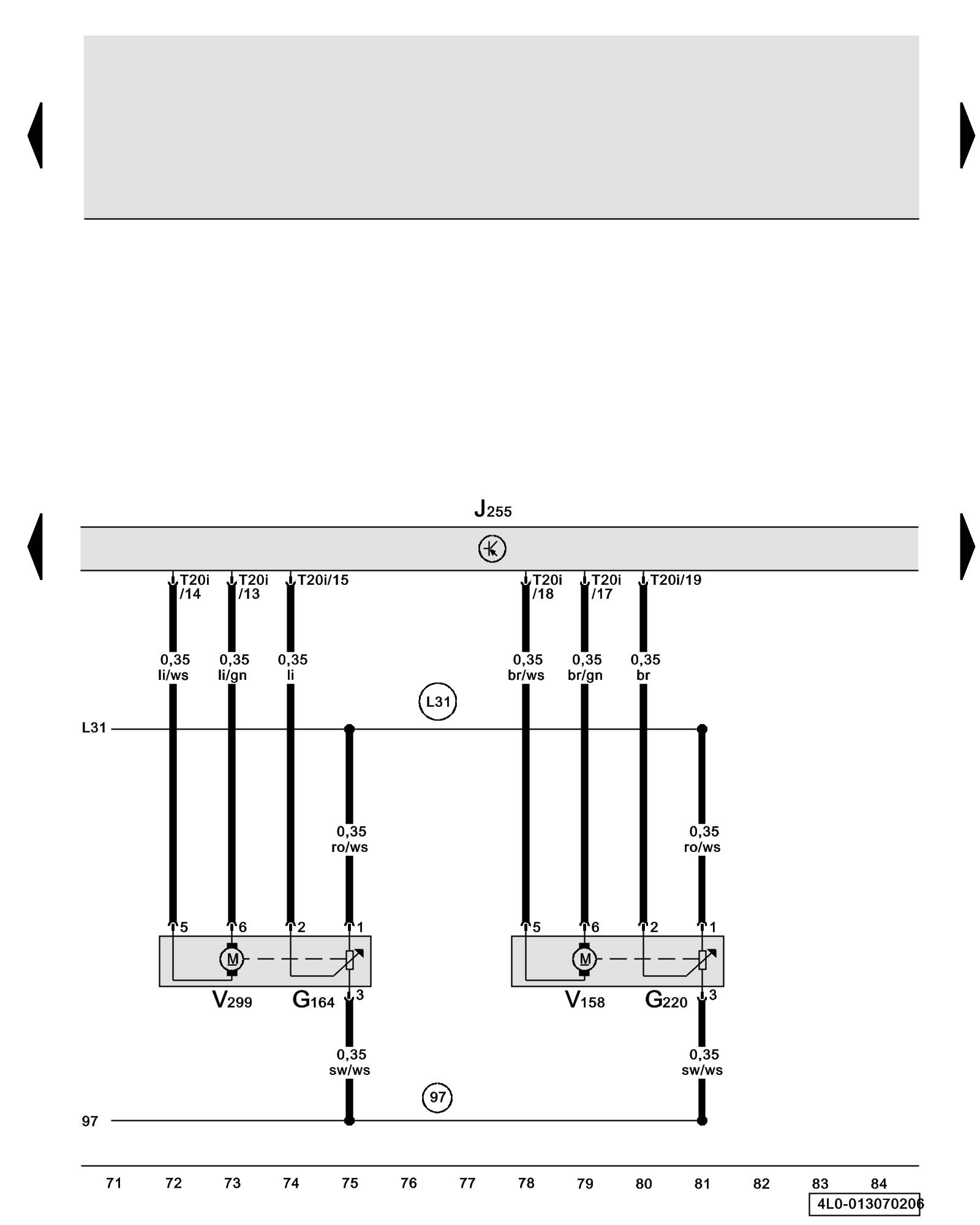

Diagram 13/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Climatronic Control Module, Left Side Vent Motor Position Sensor, Left Temperature Flap Potentiometer/Actuator, Left Temperature Flap Motor, Left Side Vent Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G164 - Left Side Vent Motor Position Sensor Front A/C System Components in Pass Compartment - Left Side

G220 - Left Temperature Flap Potentiometer/Actuator Front A/C System Components in Pass Compartment - Left Side

J255 - Climatronic Control Module Overview Of Control Modules

T20i - 20-Pin Connector, red (Connector B), on Climatronic control module

V158 - Left Temperature Flap Motor Front A/C System Components in Pass Compartment - Left Side

V299 - Left Side Vent Motor Front A/C System Components in Pass Compartment - Left Side

(97) - Ground Connection 1 (in A/C wiring harness)

(L31) - Connection (5 Volts) (in A/C wiring harness)
