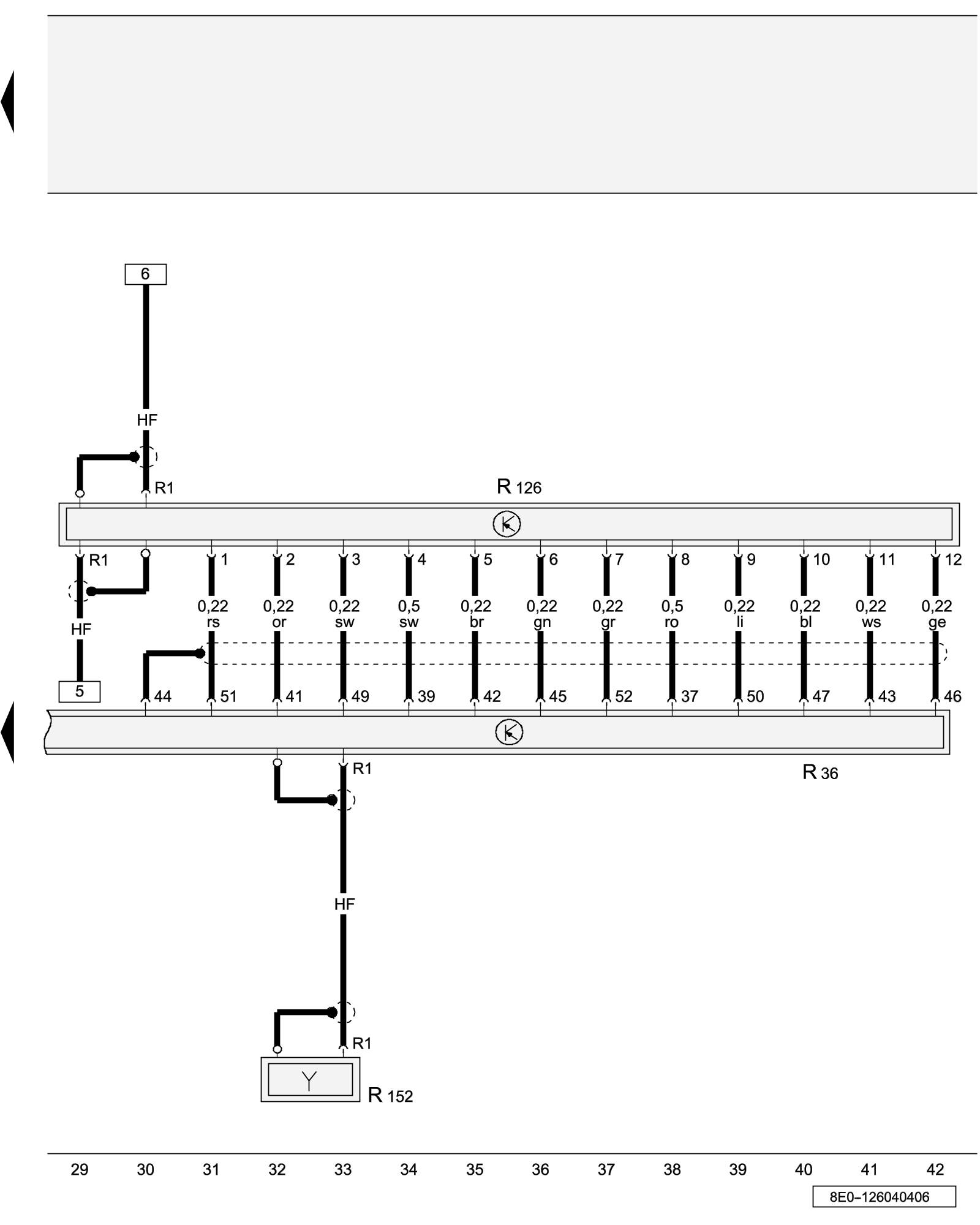

Diagram 126/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Baseplate





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R1 - Antenna Connection

R36 - Telephone Transceiver Telephone System - Sedan

R126 - Telephone Baseplate Telephone System - Sedan

R152 - Bluetooth Antenna Telephone System - Sedan

Previous Diagram 126/3 (Tracks 15-28)
