Display Group 009
Display Group 009

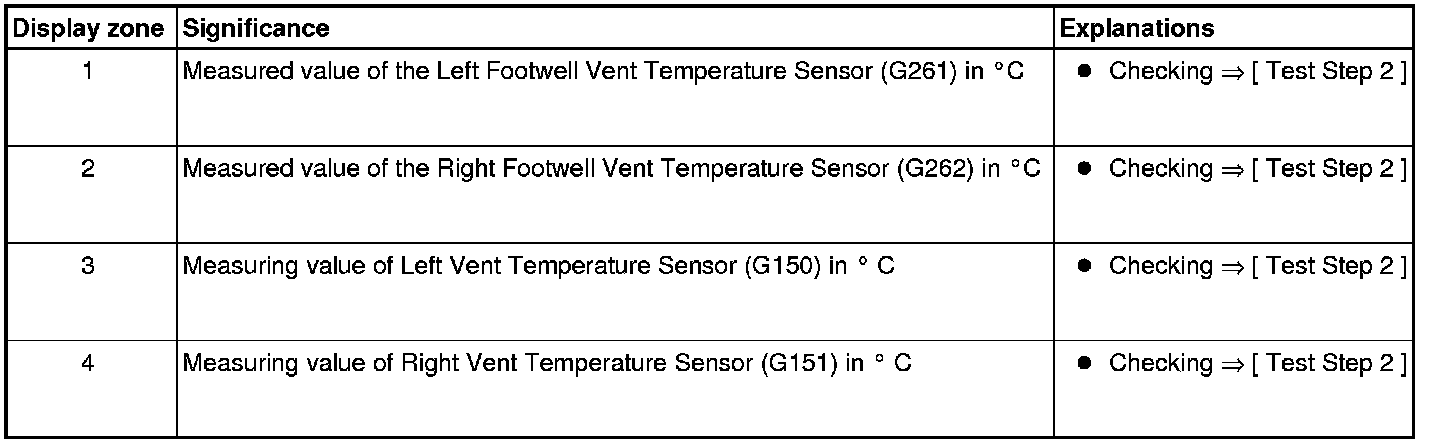

Measured values of the following sensors (left footwell vent temperature sensor (G261), right footwell vent temperature sensor (G262), left vent temperature sensor (G150) and right vent temperature sensor (G151))
