Start System Button, Audi RS4

Start System Button, Audi RS4

Removing

CAUTION!
• Switch off all electrical consumers.

• Switch ignition off and remove ignition key.

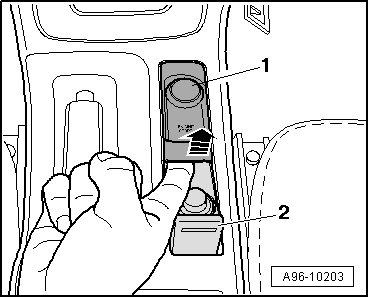

- Open cigarette lighter cover - 2 -.





- Lift Start System Button (E378) - 1 - up - arrow -and remove from installation frame as illustrated.

- Disconnect electrical connection.

Installing

Install in reverse order of removal.
