Throttle Position Sensor/Accelerator Pedal Position Sensor 2, Checking

Throttle Position Sensor/Accelerator Pedal Position Sensor 2, Checking

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram

Test requirement

• The Motronic Engine Control Module (ECM) ( J623) fuses OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position " P" or "N".

• A/C switched off.

• Ground (GND) connections between engine/transmission/chassis OK.

• Use only gold-plated terminals when servicing the electrical harness connector terminals in Throttle Position (TP) Sensor (G79 )/Accelerator Pedal Position Sensor 2 (G185).

Test sequence

- Remove the drivers side storage compartment. Refer to Body Interior Repair Information.

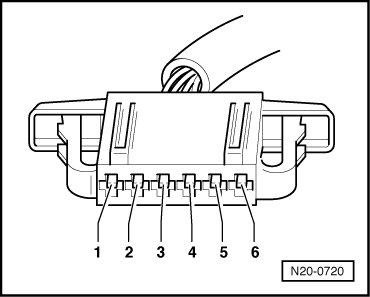

- Disconnect the Throttle Position (TP) Sensor ( G79)/Accelerator Pedal Position Sensor 2 (G185 ) electrical harness connector - 2 -.





Checking voltage supply and wiring

- Switch the ignition on.

- Using a Multimeter, check the following wiring connections for voltage.









- Switch the ignition off.

If the specification is not obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box. Refer to Fuel Injection and Ignition Repair Information.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Motronic Engine Control Module (ECM) ( J623). Refer to => [ Engine Control Module 1, Removing and Installing ] Engine Control Module 1, Removing and Installing.

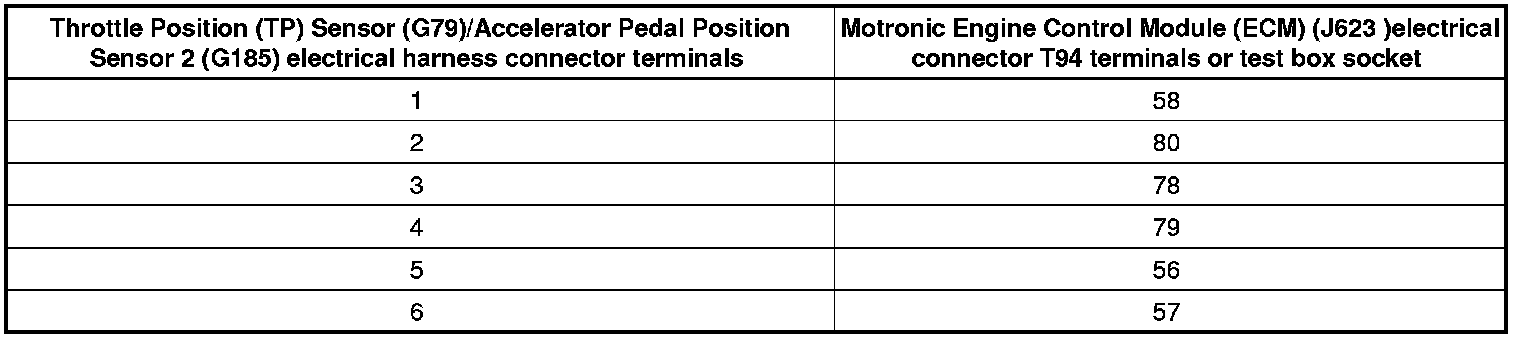

- Using a Multimeter, check the Throttle Position (TP) Sensor (G79)/Accelerator Pedal Position Sensor 2 (G185) electrical harness connector terminals to the Motronic Engine Control Module (ECM) (J623) electrical connector T94 for an open circuit according to wiring diagram.





Specified value: 1.5 ohms max.

If the specification is not obtained:

- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and the voltage supply was OK:

- Replace the Throttle Position (TP) Sensor (G79 )/Accelerator Pedal Position Sensor 2 (G185). Fuel Supply System Repair Information.

If no malfunction is detected in the wiring and if the voltage supply was not OK:

- Replace the Motronic Engine Control Module (ECM) (J623). Refer to => [ Engine Control Module 1, Removing and Installing ] Engine Control Module 1, Removing and Installing.

- Install the drivers side storage compartment.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

- End of diagnosis.
