SDARS Radio Connectors, Concert II and Symphony II, From May 2006

SDARS Radio Connectors, Concert II and Symphony II, from May 2006

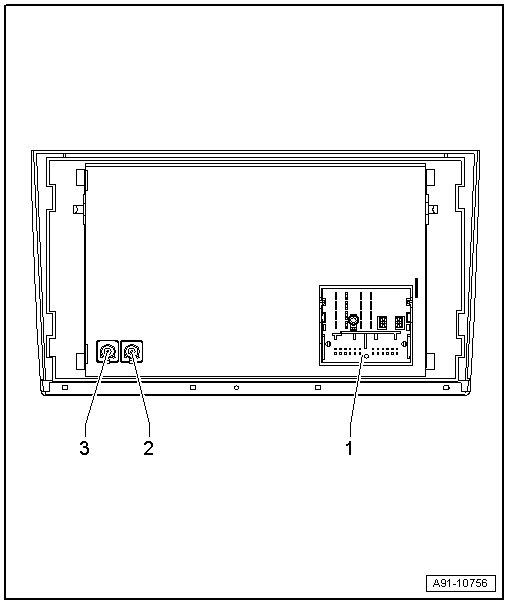

1 Connector block with 4 pin connectors and fuse

2 HF1 connection (white) from the Left Antenna Module (R108)

3 HF2 connection (white) from the Right Antenna Module (R109)

• Unlisted connector terminals are not assigned.

A - 8-pin connector (T8h) black





2 Right front speaker (+) (not with Bose(R))
3 Left front speaker (+) (not with Bose(R))
6 Right front speaker (-) (not with Bose(R))
7 Left front speaker (-) (not with Bose(R))

B - 12-pin connector, (T12f) blue





1 LF in left (not used)
2 CD ground to CD Changer ( R41)/iPod Baseplate (R192)/ Satellite Radio (R146)
3 LF in ground (not used)
4 Continuous plus to the CD changer (R41)/iPod Baseplate (R192)
5 Bose(R) coding to ground (only with Bose(R))
6 CD data to CD changer (R41 )/iPod Baseplate (R192)
7 LF in right (not used)
8 Left signal from CD Changer (R41)/iPod Baseplate (R192)/Satellite Radio (R146)
9 Right signal from CD Changer (R41)/iPod Baseplate (R192)/Satellite Radio (R146)
10 Plus switched to CD changer (R41)/iPod Baseplate (R192)
11 CD data in from the CD changer (R41)/iPod Baseplate (R192)
12 CD CLK from CD changer ( R41)/iPod Baseplate (R192)

C - 12-pin connector, (T12) green





1 Speed signal (not used)
3 Left front signal to Amplifier (R12) (only with Bose(R))
5 Left rear signal to Amplifier (R12)
6 LF (-) from Telephone Transceiver (R36)
7 K diagnostic (not used)
8 Signal ground to Radio ( R12)
9 Right front signal to Amplifier (R12) (only with Bose(R))
10 Audio Pilot in/out (not used)
11 Right rear signal to Amplifier (R12)
12 LF (+) from Telephone Transceiver (R36)

D - 8-pin connector (T8h) black





9 CAN-Bus High (Infotainment)
10 CAN-Bus Low (Infotainment)
11 NF mute, not used
12 Terminal 31
13 Positive switched to Amplifier (R12)
14 Anti-theft warning system (not used)
15 Terminal 30
16 Permanent positive connected with PIN 15 (anti-theft warning system)
