Trunk / Liftgate Stop: Adjustments

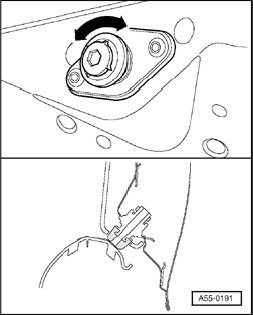

Stop buffer, adjusting







- Open rear lid.
- Remove rubber cap.
- Screw in buffer stops until they reach stop.
- Unscrew stop again in steps.
- Press rubber cap on.

- When adjusted correctly and with lid closed, buffer stops must make contact lightly on luggage compartment edge.
