Rear Cross Panel Trim

Rear Cross Panel Trim

Special tools, testers and auxiliary items required

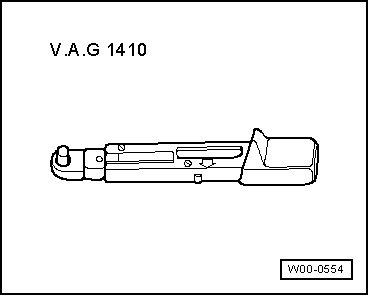

• Torque Wrench (V.A.G 1410)

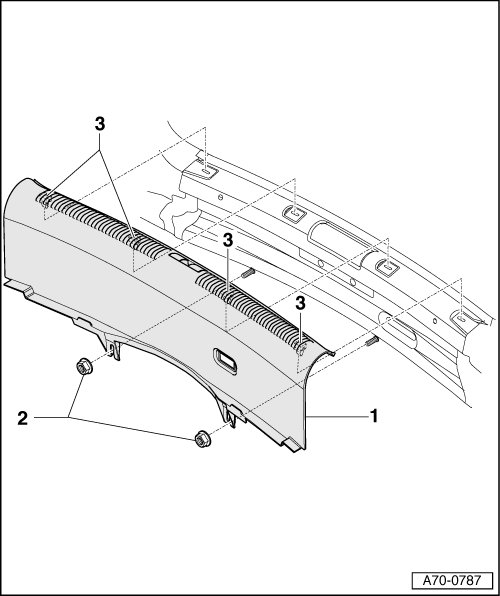

1 Rear Cross Panel Trim

• Removal:

- Remove floor covering from luggage compartment.

- Loosen two nuts - 2 - on rear cross panel trim - 1 - behind spare wheel and remove nuts.

- Remove luggage compartment lighting connector.

- Unclip rear cross panel trim - 1 - upward from four metal clips - 3 -.

• Installing:

To install, perform the steps used in removal in reverse order. Observe the following when doing so:

• after assembling trim, make sure seal is properly fitted.

• Reconnect lighting connector.

2 Nuts (Qty. 2)

• Tightening specification 5 Nm

3 Metal Clips (Qty. 4)
