Mirror Housing, Removing and Installing

Mirror housing, removing and installing

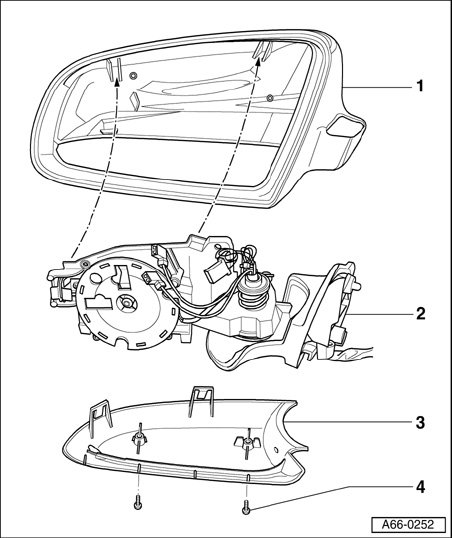

1 - Mirror housing
- Removing:
- Remove bolts from cover trim and remove downward.
- Release housing from locking tabs on mirror adjusting unit and remove it upward.
- Installing:
- Position mirror housing onto mirror adjusting unit from above.
- While doing so, locking tabs-arrows-in mirror adjusting unit must engage above and below.
2 - Mirror adjusting unit
3 - Lower cover
4 - Bolts
- 1 Nm







Lower mirror locking tab

- When installing, locking tab - arrow A - of mirror adjusting unit - 2 - must be inserted into mirror housing catches - 1 - in - direction of arrow -.
