Variable Convertible Top Compartment Guide Rails

Variable Convertible Top Compartment Guide Rails

- Remove the variable convertible top compartment. Refer to => [ Variable Convertible Top Compartment ] Variable Convertible Top Compartment.

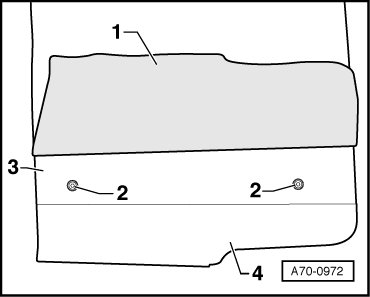

- Pull the carpet - 1 - (convertible top compartment trim) on the side to be changed until both screws are accessible - 2 -.





• Glue the carpet with D 001 200.

- Remove bolts - 2 - (Qty. 2).

• Tightening specification 4 Nm

- Separate the center part of the compartment - 3 - from the side panel - 4 -.

- Pull the side panel - 1 - and - 2 - apart from each other.

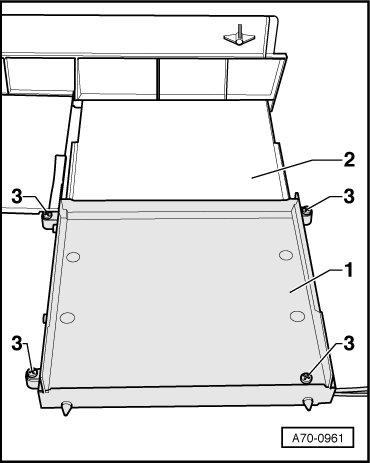

- Remove the screws - 3 - (Qty. 4) from the inner cover.

• Tightening specification 2 Nm

- Remove the inner cover - 1 -.

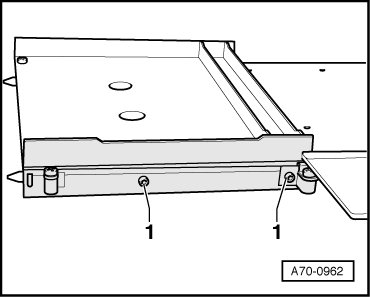

- Remove the screws - 1 - (Qty. 4) on both sides.





• Tightening specification 2 Nm.

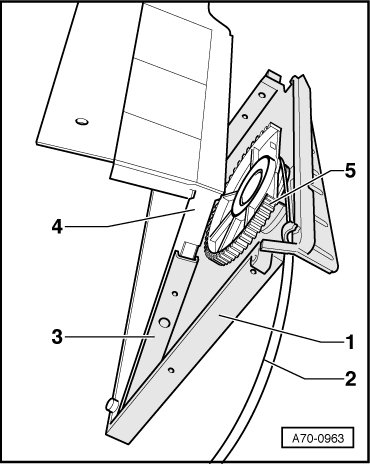

- Pull the parts - 1 - and - 4 - upward and apart from each other.





- Pry out the guide rails - 3 - from the catch from part - 1 -.

- Separate the parts - 1 - and - 4 - from each other.

- Remove left and right bolts - 2 -.





• Tightening specification 1 Nm.

- Push the guide rail - 1 - downward out of the retaining hooks.

- Remove the guide rail - 1 -.
