Convertible Top System Overview
Top Convertible System

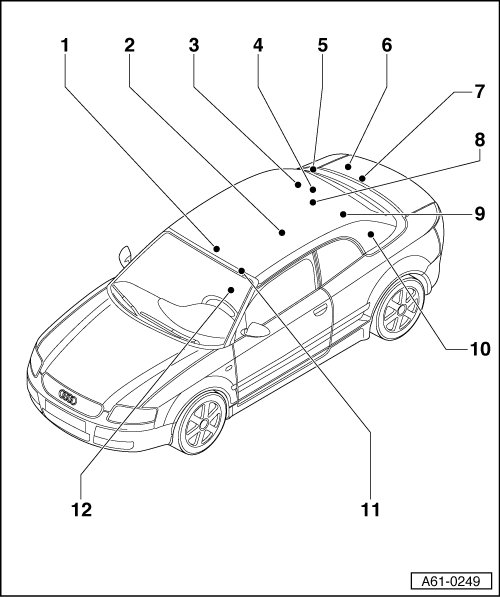

Convertible Top System Overview
Component A is not shown in the overview
A - Convertible Top Right Lock Switch -F170-
• Located top right in windscreen frame
1 - Convertible top latch => [ Convertible Top Switches ] See Image Below.
Convertible top latch consists of the following:
• Convertible Top Locking Motor -V223-
• Convertible Top Lock Switch (open) -F294-
• Convertible Top Lock Switch (closed) -F295-
2 - Convertible Top Control Module -J256- => [ Convertible Top Control Module ] See Image Below.
3 - Convertible top position switch => [ Convertible Top Assembly Overview ] See Image Below.
Convertible top position switch consists of the following:
• Convertible Top Open Position Switch -F171-
• Convertible Top Closed Position Switch -F202-
4 - Convertible Top Frame Position Sensor -G356- => [ Convertible Top Frame Position Sensor ] See Image Below.
• On main pivot bearing rear right
5 - Compartment Cover Open Position Switch -F201- => [ Compartment Cover Open Position Switch ] See Image Below.
6 - Convertible top operation hydraulic unit => [ Convertible Top Hydraulic Unit and Pump ] See Image Below.
• Located in luggage compartment trim
Convertible top operation hydraulic unit consists of the following:
• Convertible Top Hydraulic Pump -V118-
• Convertible Top Hydraulic Pump Relay -J321-
• Convertible Top Hydraulic Pump Relay 2 -J588-
• Power Convertible Top Valve 1 -N272-
• Power Convertible Top Valve 2 -N341-
• Power Convertible Top Valve 3 -N342-
Convertible Top System Overview continued
7 - Convertible Top Compartment Enclosure Position Switch -F292- => [ Convertible Top Compartment Enclosure Position Switch ] See Image Below.
• Located right in the luggage compartment and integrated in the convertible top box wall
8 - Compartment Cover Locked Right Switch 1 -F200- => [ Compartment Cover Locked Right Switch 1 ] See Image Below.
• Located in the convertible top box in back panel right
9 - Convertible top compartment cover lock => [ Convertible Top Compartment Cover Lock ] See Image Below.
• Located in the convertible top box in back panel center
Convertible top compartment cover lock consists of the following:
• Convertible Top Compartment Latch Switch (unlock) -F293-
• Convertible Top Compartment Cover Locking Motor -V222-
10 - Left Convertible Top Compartment Cover Switch -F290- => [ Left Convertible Top Compartment Cover Switch ] See Image Below.
• Located in the convertible top box in back panel left
11 - Convertible Top Front Lock Switch -F172- => [ Convertible Top Front Lock Switch ] See Image Below.
• In windscreen frame top left
12 - Convertible Top Operation Switch -E137-
• Located at the center console

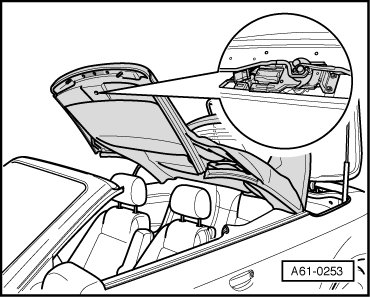

Convertible Top Switches
- Convertible top latch
Convertible top latch consists of the following:
• Convertible Top Locking Motor -V223-
• Convertible Top Lock Switch (open) -F294-
• Convertible Top Lock Switch (closed) (1995) -F295-

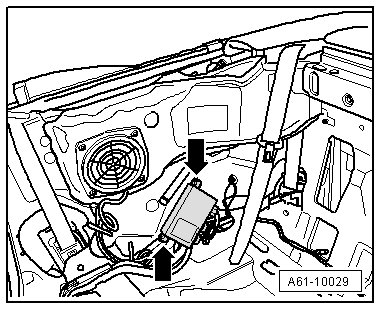

Convertible Top Control Module
Arrow - Convertible Top Control Module -J256-

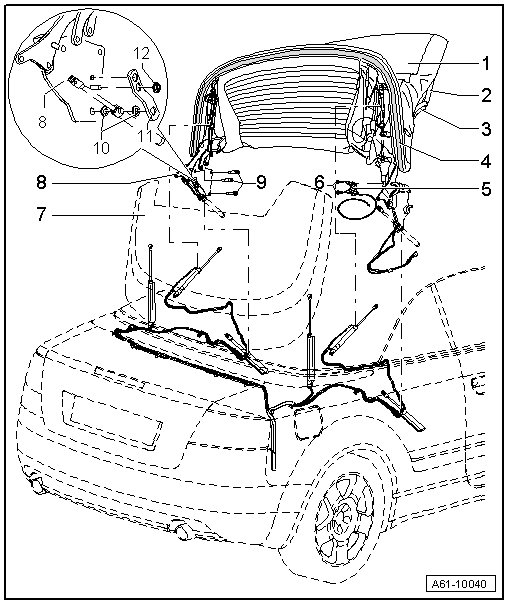

Convertible Top Assembly Overview
5 - Convertible top switch unit
Convertible top position switch consists of the following:
• Convertible Top Open Position Switch -F171-
• Convertible Top Closed Position Switch -F202-

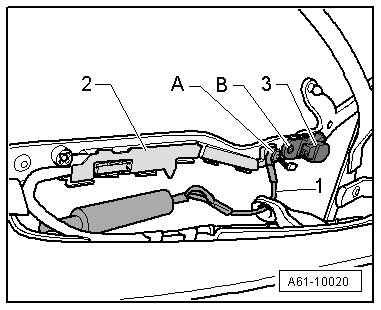

Convertible Top Frame Position
Sensor
3 - Convertible Top Frame Position Sensor -G356-
Compartment Cover Open Position
Switch
2 - Compartment Cover Open Position Switch -F201-
Convertible Top Hydraulic Unit
and Pump
- - Convertible top operation hydraulic unit
Convertible top operation hydraulic unit consists of the following:
• Convertible Top Hydraulic Pump -V118-
• Convertible Top Hydraulic Pump Relay -J321-
• Convertible Top Hydraulic Pump Relay 2 -J588-
• Power Convertible Top Valve 1 -N272-
• Power Convertible Top Valve 2 -N341-
• Power Convertible Top Valve 3 -N342-

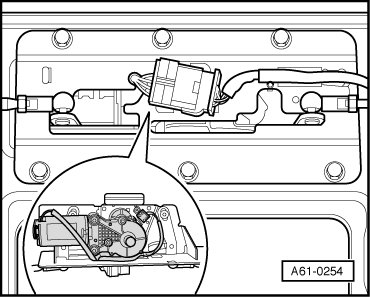

Convertible Top Compartment Cover
Lock

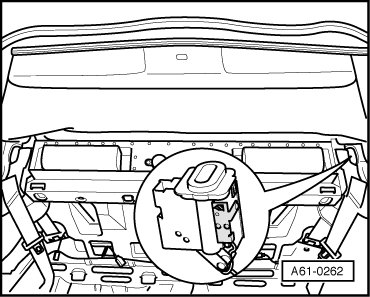

- - Convertible top compartment cover lock
Convertible top compartment cover lock consists of the following:
• Convertible Top Compartment Latch Switch (unlock) -F293-
• Convertible Top Compartment Cover Locking Motor -V222-
Compartment Cover Locked Right
Switch 1
- - Compartment Cover Locked Right Switch 1 -F200-
Left Convertible Top Compartment
Cover Switch
- - Left Convertible Top Compartment Cover Switch -F290-

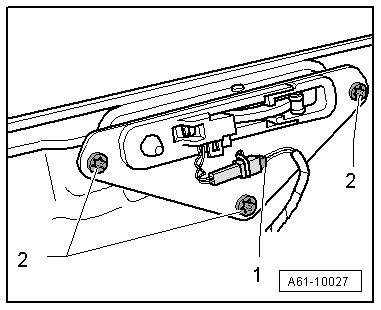

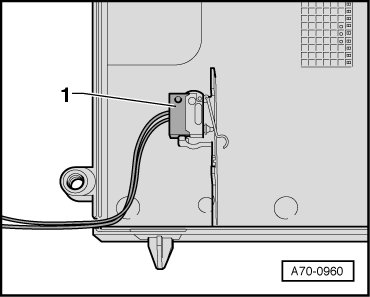

Convertible Top Front Lock Switch
1 - Convertible Top Front Lock Switch -F172-

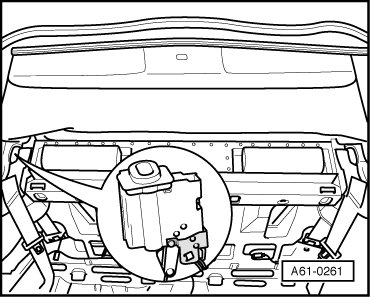

Convertible Top Compartment Enclosure
Position Switch
