Bench Seat Cover and Cushion

Bench Seat Cover and Cushion

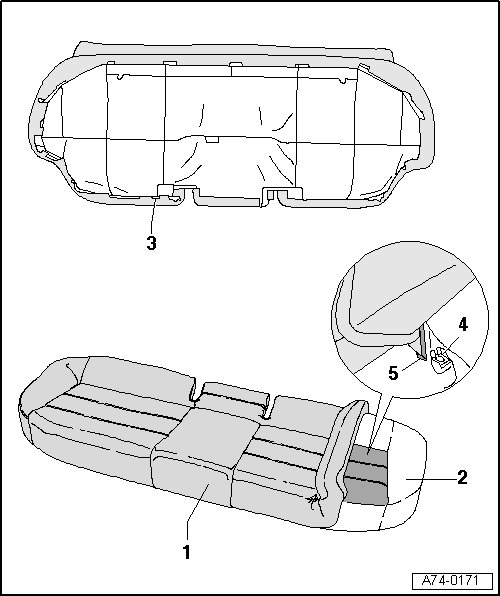

1 Cover

• Removal:

- Remove rear bench seat: through October 2004, refer to => [ Bench Seat, through October 2004 ] Rear Seats; from November 2004 => [ Bench Seat, from November 2004 ] Rear Seats.

- Pry out plastic strips - 3 - using a screwdriver.

- Turn back cover - 1 -.

- Remove cover - 1 - upward and press in plastic clips - 4 - (2Qty. 4) using a screwdriver.

- Pry out plastic strips - 5 -.

• Installing:

To install, perform the steps used in removal in reverse order. Observe the following when doing so:

- Replace damaged plastic clips.

2 Upholstery

3 Plastic Strips (Qty. 24)

4 Plastic Clips (Qty. 24)

• Replace damaged plastic clips.

5 Plastic Strips
