Symphony
Symphony

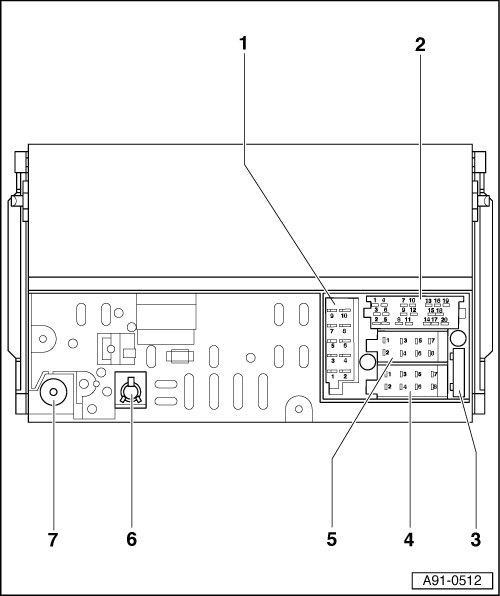

1 Multi-pin connector IV, 10-pin, (T10l) red
2 Multi-pin connector I, 20-pin, (T20d) black
3 Device fuse
4 Multi-pin connector III, 8-pin, (T8) black
5 Multi-pin connector II, 8-pin, (T8a) brown
6 IF connection (yellow) to Antenna Selection Control Module (J515)/Left Antenna Module (R108)
7 HF connection (black) to Antenna Selection Control Module (J515)/Left Antenna Module (R108)

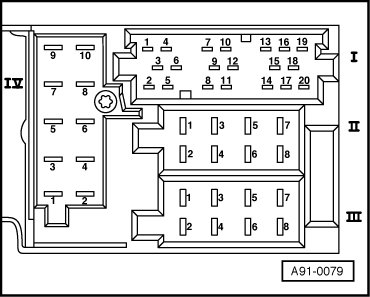

• Unlisted connector terminals are not assigned.
1 - Multi-pin connector IV, 10-pin, (T10l) red
1 NF mute from Telephone Transceiver (R36)/preliminary setup for cell phone package
3 NF (+) from Telephone Transceiver (R36) (not with Nav IV)/preliminary setup for cell phone package
4 NF (-) from Telephone Transceiver (R36) (not with Nav IV)/preliminary setup for cell phone package
5 NF (+) from Navigation System with CD Drive Control Module (J401) (only with Nav IV)
6 NF (-) from Navigation System with CD Drive Control Module (J401) (only with Nav IV)
7 Navigation control wire from Navigation System with CD Drive Control Module (J401) (only with Nav IV)
2 - Multi-pin connector I, 20-pin, (T20d) black
1 Left rear signal to Amplifier (R12)
2 Right rear signal to Amplifier (R12)
3 Signal ground to Radio ( R12)
4 Left front signal to Amplifier (R12) (only with BOSE(R))
5 Right front signal to Amplifier (R12) (only with BOSE(R))
6 Positive switched to Amplifier (R12)
7 CAN-Bus High (Infotainment)
10 CD ground to CD Changer ( R41)
12 CAN-Bus Low (Infotainment)
13 CD data in from CD Changer (R41)
14 CD data out to CD Changer ( R41)
15 CD CLK from CD Changer ( R41)
16 Permanent positive to CD Changer (R41)
17 Positive switched to CD Changer (R41)
18 CD ground to CD Changer ( R41)
19 Left signal from CD Changer (R41)
20 Right signal from CD Changer (R41)
4 - Multi-pin connector III, 8-pin, (T8) black
1 BOSE(R) coding to ground (only with BOSE(R))
2 Anti-theft warning system ground from Comfort System Central Control Module (J393)
3 L-diagnostic
7 Terminal 30
8 Terminal 31
5 - Multi-pin connector II, 8-pin, (T8a) brown
3 Right front speaker (+) (not with BOSE(R))
4 Right front speaker (-) (not with BOSE(R))
5 Left front speaker (+) (not with BOSE(R))
6 Left front speaker (-) (not with BOSE(R))
