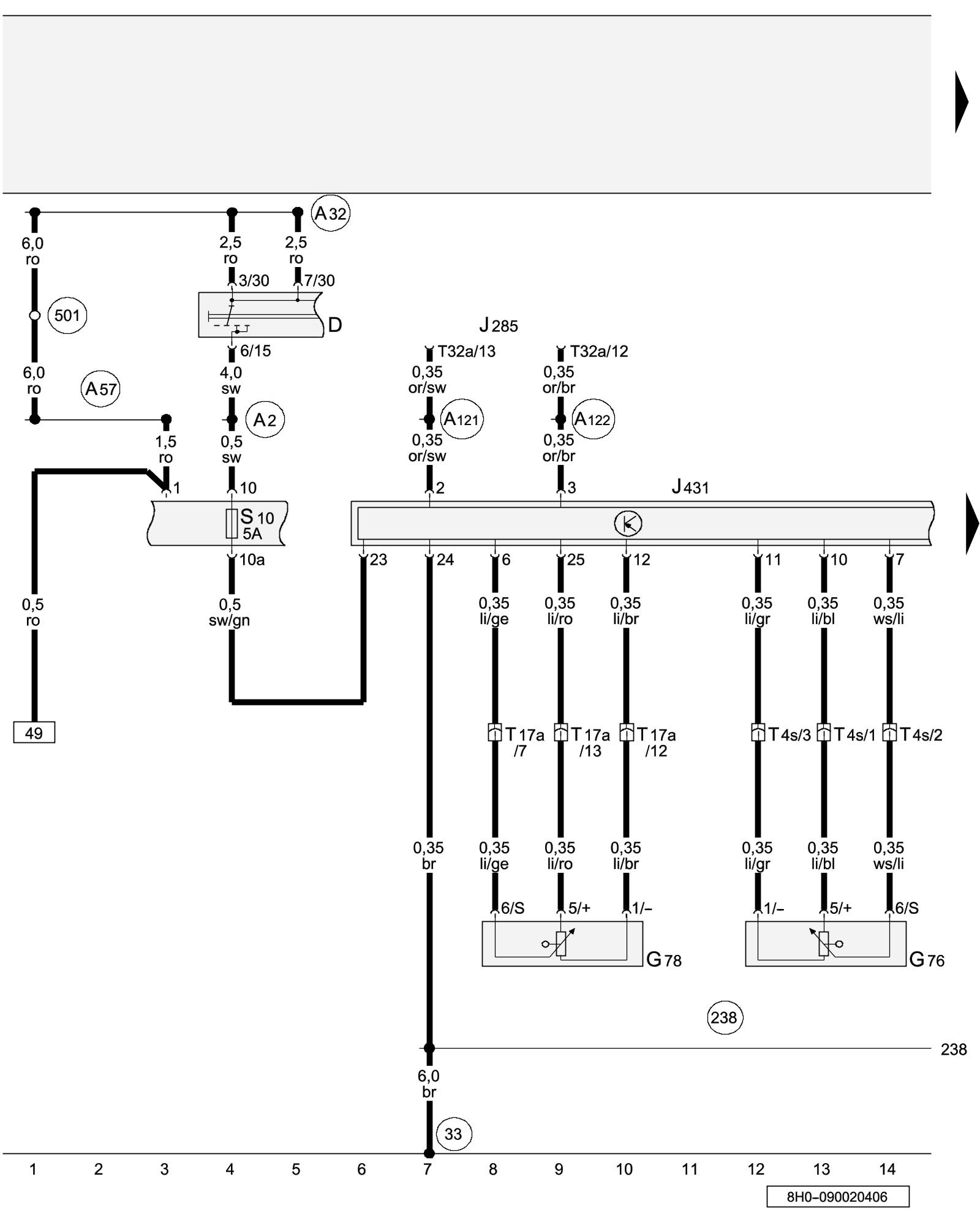

Diagram 90/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left Rear Level Control System Sensor, Left Front Level Control System Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/Starter Switch

G76 - Left Rear Level Control System Sensor Locations

G78 - Left Front Level Control System Sensor Locations

J285 - Instrument Cluster Control Module Common Modules Overview

J431 - Headlamp Range Control Module Common Modules Overview

S10 - Fuse (on fuse/relay panel)

T4s - 4-Pin Connector, black, for Left Rear Level Control System Sensor

T17a - 17-Pin Connector, red, connector station A-pillar, left Connector Station

T32a - 32-Pin Connector, green, on instrument panel insert

(33) - Ground Connection (behind instrument panel, right) Ground Locations

(238) - Ground Connection 1 (in interior wiring harness)

(501) - Threaded Connection 2 - terminal 30 (on relay panel)

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A32) - Plus Connection (30) (in instrument panel wiring harness)

(A57) - Plus Connection 3 (30) (in instrument panel wiring harness)

(A121) - High-Bus Connection (in instrument panel wiring harness)

(A122) - Low-Bus Connection (in instrument panel wiring harness)

Next Diagram 90/3 (Tracks 15-28)
