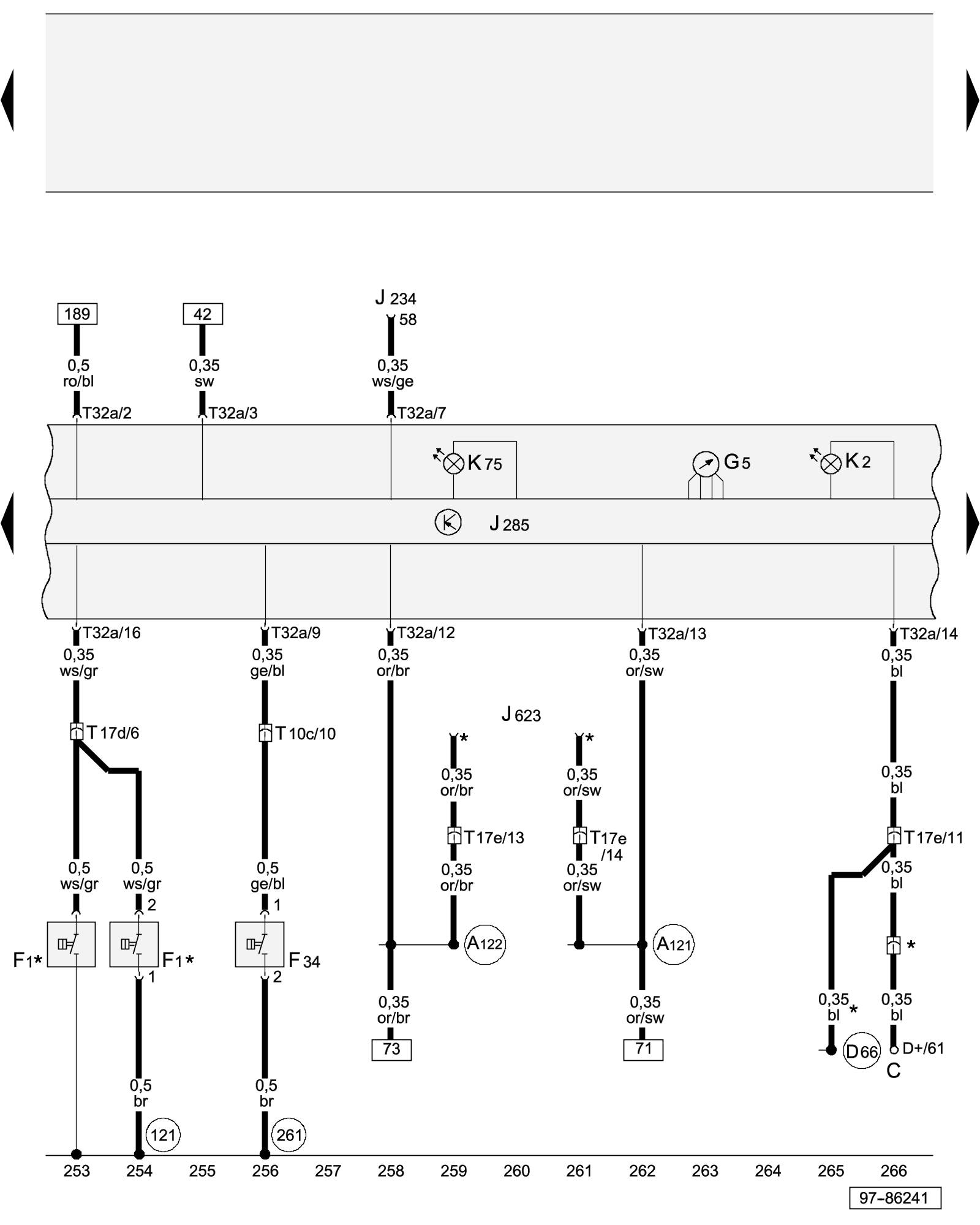

Diagram 77/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Oil Pressure Switch, Brake Fluid Level Warning Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C - Generator (GEN)

F1 - Oil Pressure Switch Locations

F34 - Brake Fluid Level Warning Switch Locations

G5 - Tachometer

J234 - Airbag Control Module Common Modules Overview

J285 - Instrument Cluster Control Module Common Modules Overview

J623 - Engine Control Module (ECM) Locations

K2 - Generator (GEN) Warning Lamp

K75 - Airbag Malfunction Indicator Lamp (MIL)

T10c - 10-Pin Connector, violet, connector station A-pillar, left Connector Station

T17d - 17-Pin Connector, red, connector station E-box, plenum chamber Connector Station

T17e - 17-Pin Connector, white, connector station E-box, plenum chamber Connector Station

T32a - 32-Pin Connector, green, on instrument panel insert

(121) - Ground Connection 2 (in right front wiring harness)

(261) - Ground Connection (in heated spray jet wiring harness)

(A121) - High-Bus Connection (in instrument panel wiring harness)

(A122) - Low-Bus Connection (in instrument panel wiring harness)

(D66) - Plus Connection (61) (in engine compartment wiring harness)

* - => Current wiring diagram for engine

Previous Diagram 77/19 (Tracks 239-252)

Next Diagram 77/21 (Tracks 267-280)
