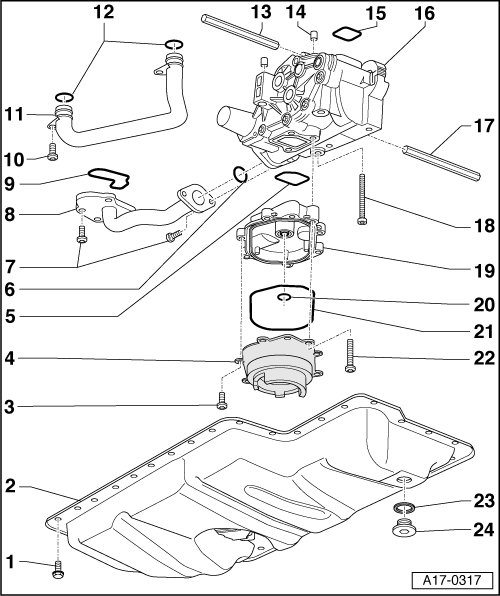

Oil Pump and Oil Pan Lower Section Component Overview

Oil Pump and Oil Pan Lower Section Component Overview





1 10 Nm

2 Lower oil pan section

• Removing and installing, refer to => [ Oil Pan Lower Section ] Oil Pan Lower Section

• With Oil Level Thermal Sensor (G266)

• Oil Level Thermal Sensor (G266), removing and installing => [ Oil Level Thermal Sensor, Removing and Installing ]

3 10 Nm

4 Intake tube

• With oil strainer

5 Seal

• Replace

6 O-ring

• Replace

7 10 Nm

8 Oil pipe

9 Seal

• Replace

10 10 Nm

11 Oil pipe

12 O-rings

• Replace

13 Driveshaft for coolant pump

14 Fitting sleeves

• 2 pieces

15 Seal

• Replace

16 Oil pump

• Do not disassemble

• With relief valve approximately 4 bar

• Removing and installing, refer to => [ Oil Pump ] Oil Pump

17 Driveshaft for oil pump

18 10 Nm

19 Housing for intake tube

20 O-ring

• Replace

21 Seal

• Replace

22 10 Nm

23 Seal

• Replace

24 Oil drain plug - 50 Nm

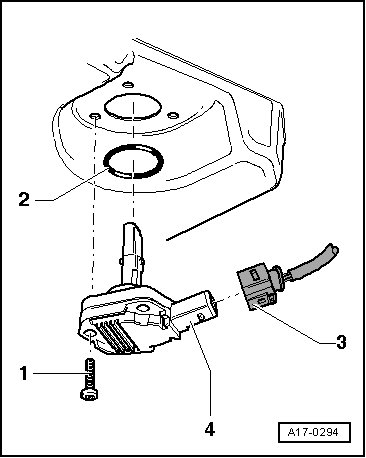

Oil Level Thermal Sensor, Removing and Installing





1. Bolt - 10 Nm. Insert using locking compound; locking compound.

2. Sealing ring; replace

3. Electrical harness connector

4. Oil Level Thermal Sensor (G266)
