Engine, Securing to Engine and Transmission Holder

Engine, Securing to Engine and Transmission Holder

Special tools, testers and auxiliary items required

• Shackle (10-222 A/12)

• Lifting tackle (3033)

• Engine and Transmission Holder (VAS 6095) with Holder for V8 Engine Audi S4, allroad quattro ( VAS 6095/1-6) or Holder for V8 Engine Audi S4, allroad quattro (VAS 6095/1-6A)

• Shop crane (VAS 6100)

• Lift arm extension for workshop crane (VAS 6101 )Additional hooks (10-222 A/2)

Procedure

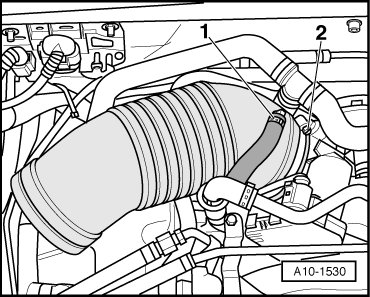

- Disconnect vacuum hose - 1 -.





- Disconnect air guide hose - 2 - from throttle valve control module.

- Secure shackle (10-222 A/12) to right rear engine lifting eyelet.





- Hook additional hook (10-222 A/2) on shackle (10-222 A/12).

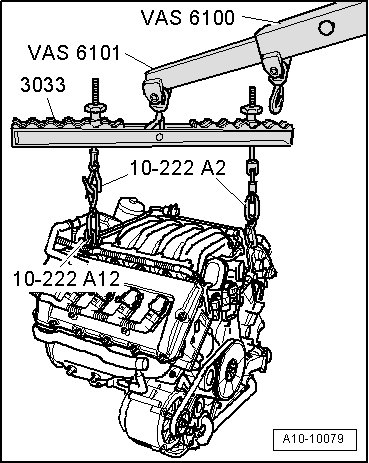

- Engage engine sling (3033) on additional hook (10-222 A/2) and on workshop crane (VAS 6100) with lift arm extension for workshop crane (VAS 6101) as shown in the illustration.





- Lift engine from support elements of scissor lift platform (VAS 6131 A).

- Remove engine mount with left engine support.

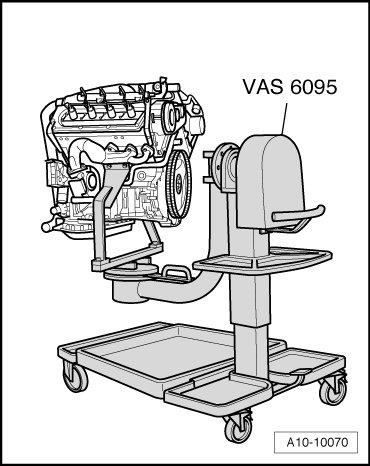

- Secure the engine using the holder for V8 engine Audi S4, allroad quattro (VAS 6095/1-6) or holder for V8 engine Audi S4, allroad quattro (VAS 6095/1-6A), secured to the engine and transmission holder (VAS 6095) and tightened to 42 Nm as shown in the illustration.
