Components in Engine Compartment and Rear Side

Climate / Climatronic Systems

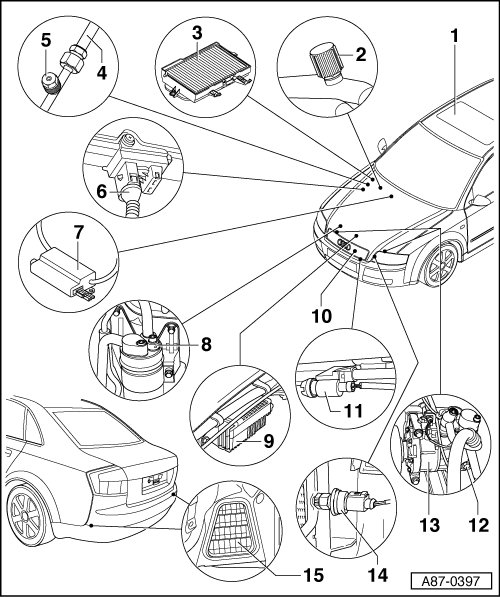

Components in Engine Compartment and Rear Side

1 - Sunroof with solar cells

2 - Service connection

3 - Dust and pollen filter

4 - Union in refrigerant pipe (with restrictor)

5 - Service connection

6 - Air Quality Sensor -G238-

7 - Heated Windshield Control Module -J505-

8 - Reservoir

9 - Coolant Fan Control (FC) Control Module -J293-

10 - Condenser

11 - Outside Air Temperature Sensor -G17-

12 - A/C Compressor Regulator Valve -N280-

13 - Compressor

14 - High Pressure Sensor -G65-

15 - Forced air extractor
