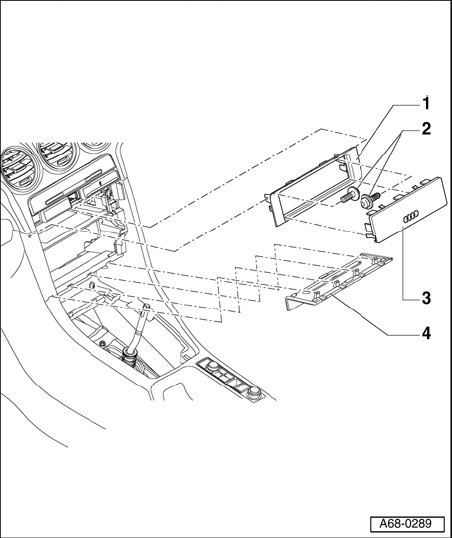

Radio Cover and Trim, Assembly Overview

Radio Cover And Trim, Assembly Overview

NOTE: Radio cover and trim are only installed in instrument panel center section for "Chorus" and "Concert" radios.







1 - Radio trim
- Removing
- Carefully unclip radio cover - 3 - or
- Remove radio.
- Remove bolts - 2 -.
- Pull radio trim - 1 - out of instrument panel center section.
2 - Bolts (2x)
- Tightening torque 1.7 Nm
3 - Radio/radio cover
4 - Tray trim
- Removing
- Carefully unclip tray trim.
