Door Panel Lamp

Interior Lamps

CAUTION!
Before beginning repairs on the electrical system:

• Obtain the anti-theft radio security code.

• Switch the ignition off.

• Disconnect the battery Ground (GND) strap.

• After reconnecting vehicle battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Information and/or Owner's Manual.

• Steps after reconnecting voltage supply => Battery.

Door Panel Lamp

Removing

- Remove door trim:

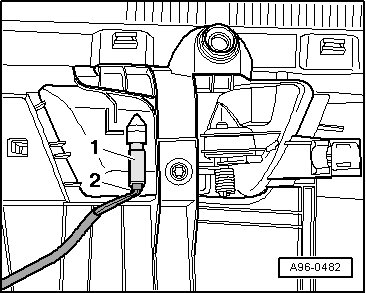

- Remove bulb - 1 - from socket at door trim.





- Unplug connector - 2 - from socket.

Installing

Installation is reverse of removal, paying attention to the following:

- Plug in connector.

- Insert light bulb for light in door panel into opening and engage.
