Upper Washer Fluid Reservoir and Power Steering Fluid Reservoir

Upper Washer Fluid Reservoir and Power Steering Fluid Reservoir

Procedure

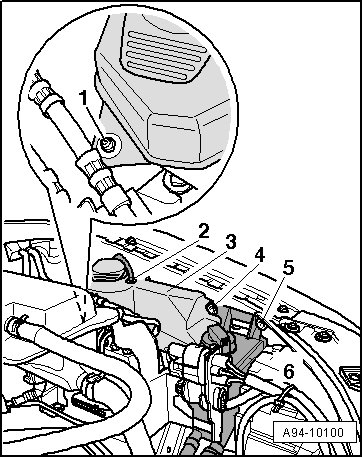

- Remove nut - 1 - and bolts - 4 - and - 5 -.





- Remove breather hose - 2 - from top section of washer fluid reservoir - 3 -.

- Remove top section of washer fluid reservoir and move power steering reservoir - 6 - to side with hydraulic hoses still attached.

Install in reverse order of removal, noting the following:

• Clean remnants of locking fluid from bolts using wire brush. Then apply locking fluid and fit bolts.

• Clean remnants of locking fluid from inside thread using a thread tap. Otherwise, bolts may break should they need to be removed again later.

Tightening Specifications
