Common Modules Overview

Common Modules

Common Modules Overview







1 - Heated Windshield Control Module - J505 => [ ] Common Modules Overview

2 - Control module for fresh air blower - J126 => [ ] Common Modules Overview

3 - Headlight Range Control Module - J431 => [ ] Common Modules Overview

4 - Steering Column Electronic Systems Control Module - J527 => [ ] Common Modules Overview

Common Modules Overview continued





5 - Control module with indicator unit in instrument panel insert - J285 => [ ] Common Modules Overview

6 - Airbag Control Module - J234 => [ ] Common Modules Overview

7 - Vehicle Electrical System Control Module - J519 => [ ] Common Modules Overview

8 - Convertible Top Control Module - J256 => [ ] Common Modules Overview

9 - Control Module for towing sensor - J345*

10 - Control module for parking aid - J446 => [ ] Common Modules Overview

Common Modules Overview continued





11 - Motronic Engine Control Module (ECM) - J220 => [ ] Common Modules Overview

12 - Transmission Control Module (TCM) (AG5) - J217*

13 - ABS Control Module (w/EDL) - J104 => [ ] Common Modules Overview

14 - Transmission Control Module (TCM) (multitronic 01J) - J217 => [ ] Common Modules Overview

15 - Coolant FC (Fan Control) Control Module - J293 => [ ] Common Modules Overview

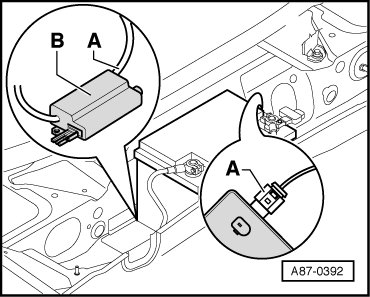

Heated Windshield Control Module -J505-







1 - Heated Windshield Control Module - J505
• Location: in plenum chamber, right, next to battery



Motronic Engine Control Module (ECM) -J220-







2 - Motronic Engine Control Module (ECM) - J220
• Location: in electronics box, plenum chamber



ABS Control Module -J104-







3 - ABS Control Module (w/EDL) - J104
• Location: in engine compartment, on hydraulic unit, front left



Transmission Control Module (TCM) -J217-







4 - Transmission Control Module (TCM) (multitronic 01J) - J217
• Location: in gearbox

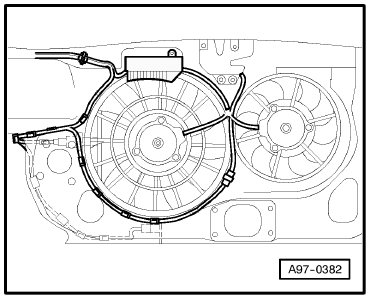

Coolant Fan Control (FC) Control Module -J293-







5 - Coolant FC (Fan Control) Control Module - J293
• Location: on front end, at radiator fan

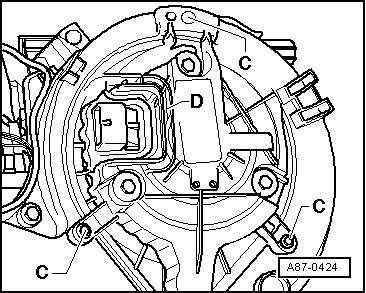

Fresh Air Blower Control Module -J126-







6 - Control module for fresh air blower - J126
• Location: behind glove box, in fresh air blower - V2



Headlamp Range Control Module -J431-







7 - Headlamp Range Control Module - J431
• Location: behind glove box

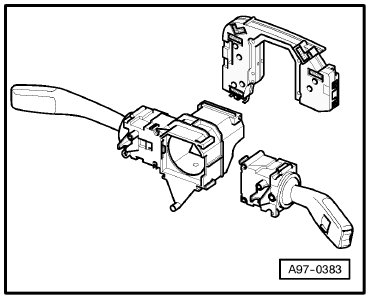

Steering Column Electronic Systems Control Module -J527-







8 - Steering Column Electronic Systems Control Module - J527
• Location: at steering column

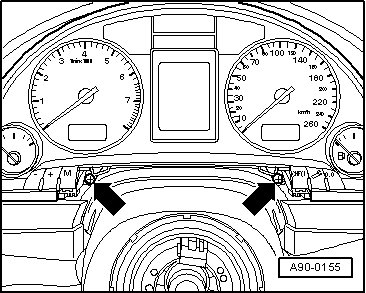

Instrument Cluster Control Module -J285-







9 - Control module with indicator unit in instrument panel insert - J285
• Location: behind display unit



Airbag Control Module -J234-







10 - Airbag Control Module - J234
• Location: below centre console, in front of handbrake lever



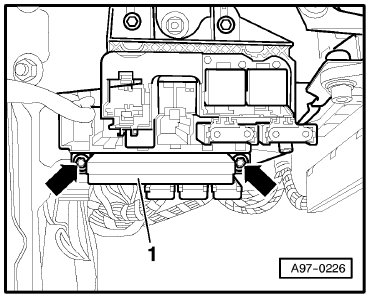

Vehicle Electrical System Control Module -J519-







11 - Vehicle Electrical System Control Module - J519
• Location: behind driver's storage compartment

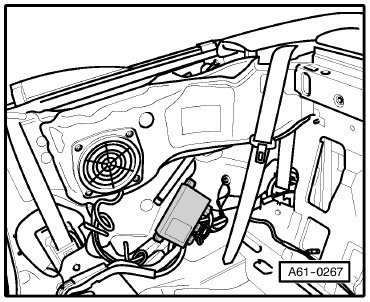

Convertible Top Control Module -J256-







12 - Convertible Top Control Module - J256
• Location: rear right, behind side trim



Parking Aid Control Module -J446-







13 - Control module for parking aid - J446
• Location: on rear cross panel, luggage compartment, left, behind trim
near left rear light
