Spiral Spring/Return Spring With Slip Ring

Spiral Spring/Return Spring with Slip Ring

Special tools, testers and auxiliary items required

• Vehicle Diagnosis, Testing and Information System ( VAS 5051 A)





Removing

- Remove the steering column trim. Refer to => [ Steering Column Trim ] Storage Compartments and Covers.

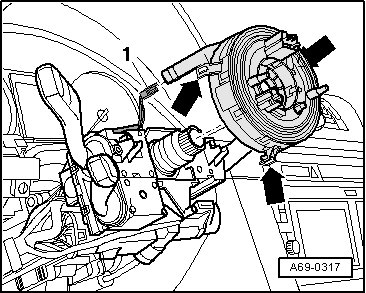

- Disconnect connector - 1 -.





- Carefully release catch - arrows - and pull return spring with slip ring from steering column switches.

Installing

To install, perform the steps used in removal in reverse order. Observe the following when doing so:

- Ensure all catches and the connection engage cleanly.

• Wheels must be in straight-ahead position when removing or installing return spring with slip ring.

• Return spring with slip ring is secured as a new part in center position with a cable tie or shear ring.

• On vehicles with ESP sensor in return spring with slip ring, ESP sensor must be adapted.
