Front Suspension

Special Tools





Special tools, testers and auxiliary items required

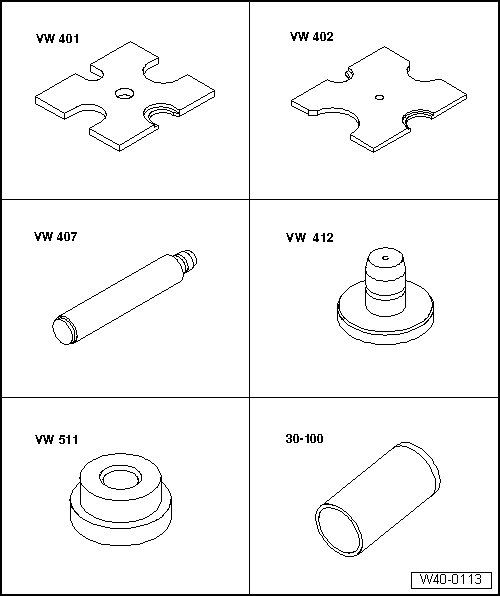

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 407)

• Punch (VW 412)

• Thrust Pad (VW 511)

• Press Tube (30 - 100)





Special tools, testers and auxiliary items required

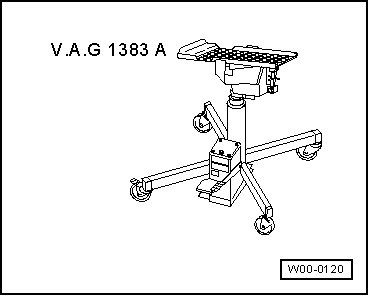

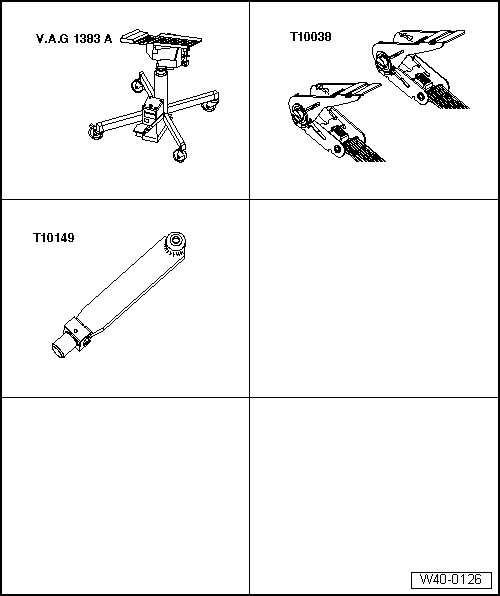

• Engine/Transmission Jack (V.A.G 1383 A)

• Tensioning Strap (T10038)

• Mount (T10149)





Special tools, testers and auxiliary items required

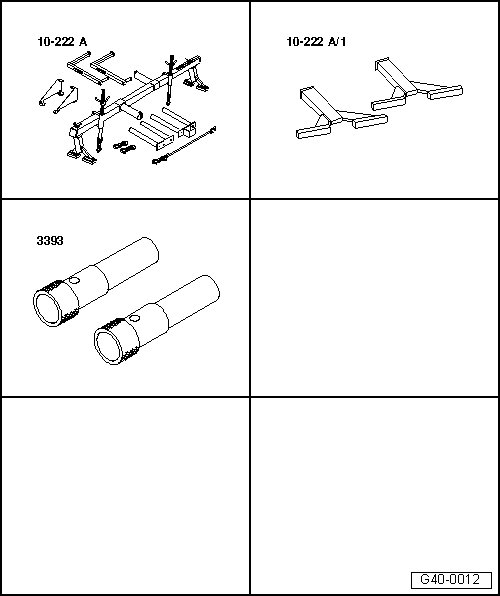

• Engine Support Bridge (10 - 222 A)

• Support (10 - 222 A /1)

• Testing Mandrel (3393)





Special tools, testers and auxiliary items required

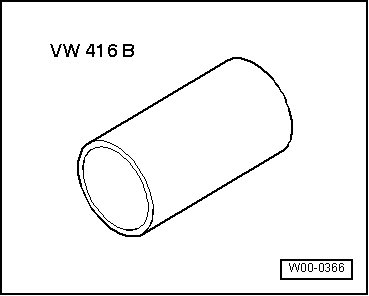

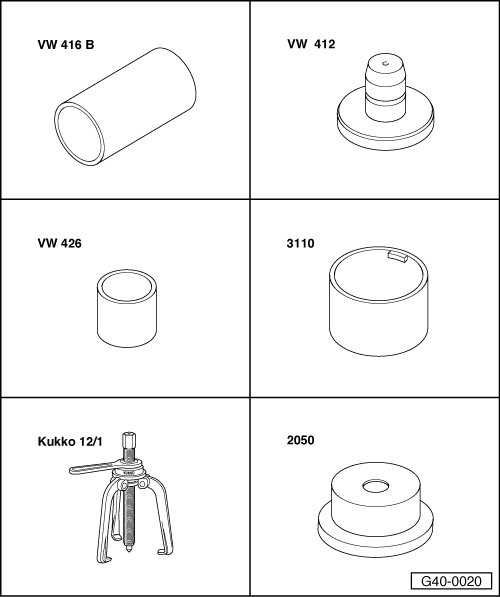

• Sleeve (VW 416 B)

• Punch (VW 412)

• Sleeve (VW 426)

• Sleeve (3110)

• Puller (Kukko 12/1)

• Press Piece (2050)





Special tools, testers and auxiliary items required

• CV Joint Boot Clamp Tool (V.A.G 1275)

• Circlip Pliers (VW 161 A)

• Pressure Spindle (3207)





Special tools, testers and auxiliary items required

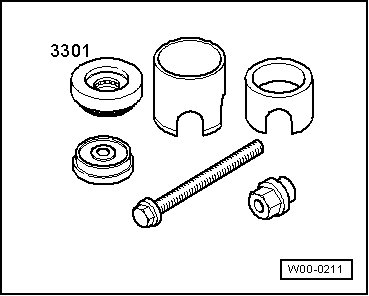

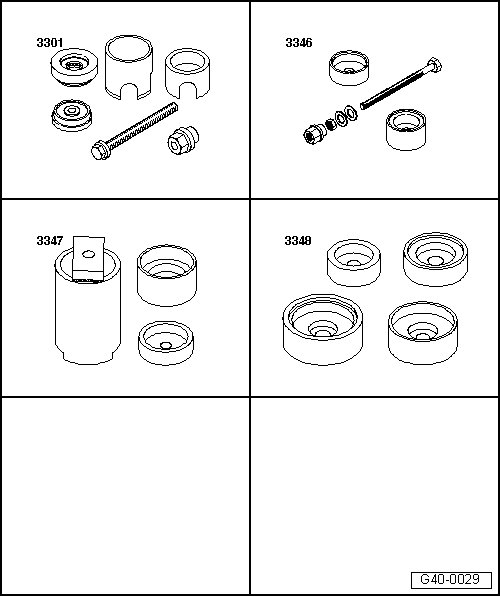

• Assembly Tool (3301)

• Assembly Tool (3346)

• Assembly Tool (3347)

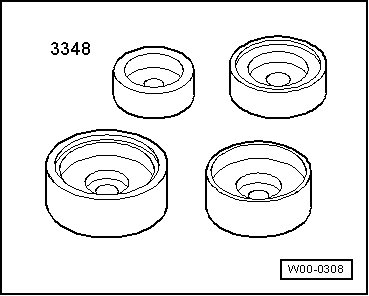

• Assembly Tool (3348)





Special tools, testers and auxiliary items required

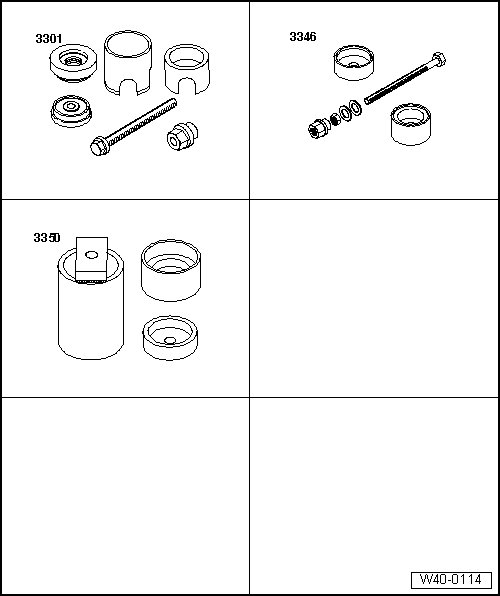

• Assembly tool (3301)

• Assembly tool (3346)

• Assembly tool (3350)





Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 412)

• Clamp (40 - 204 A)

• Support Sleeve ( VW 522)

• Punch (VW 411)





Special tools, testers and auxiliary items required

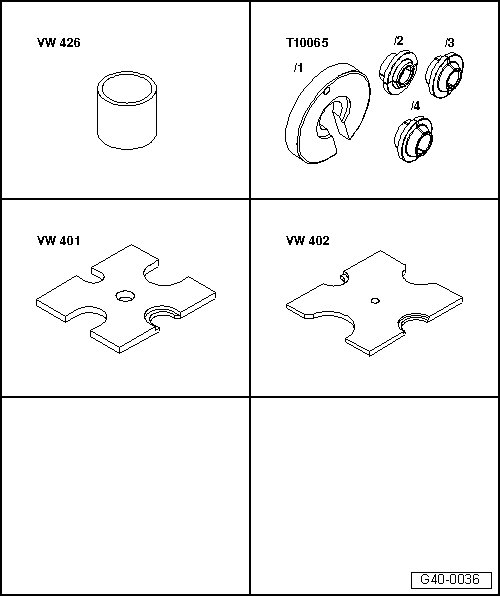

• Sleeve (VW 426)

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Assembly Tool (T10065)

• Punch (VW 408 A)





Special tools, testers and auxiliary items required

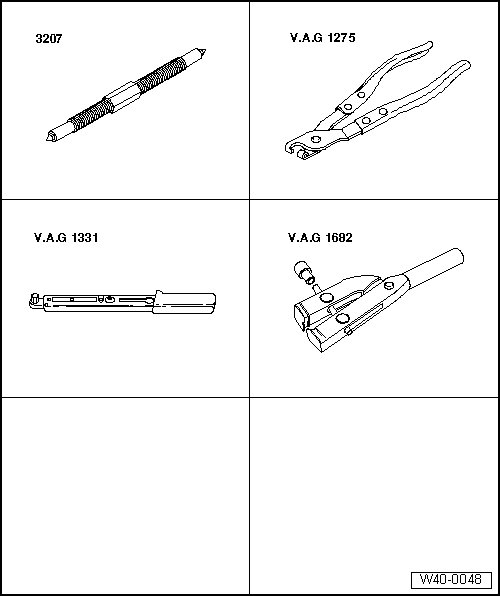

• Pressure Spindle (3207)

• Hose Clamp Pliers (V.A.G 1275)

• Torque Wrench (V.A.G 1331)

• Cv Joint Boot Clamp Tool (V.A.G 1682)





Special tools, testers and auxiliary items required

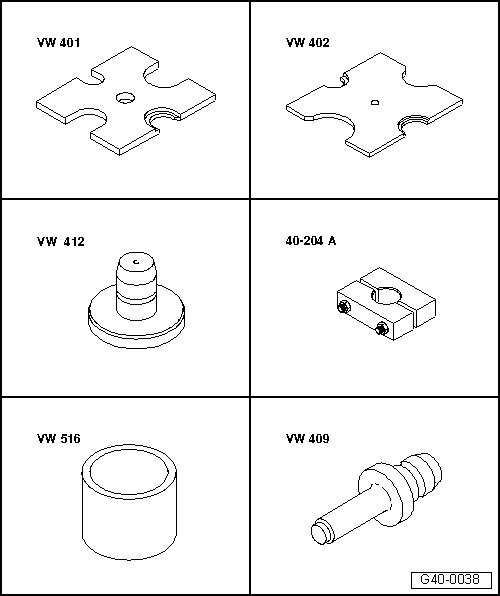

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 412)

• Clamp (40 - 204 A)

• Support Sleeve (VW 516)

• Punch (VW 409)





Special tools, testers and auxiliary items required

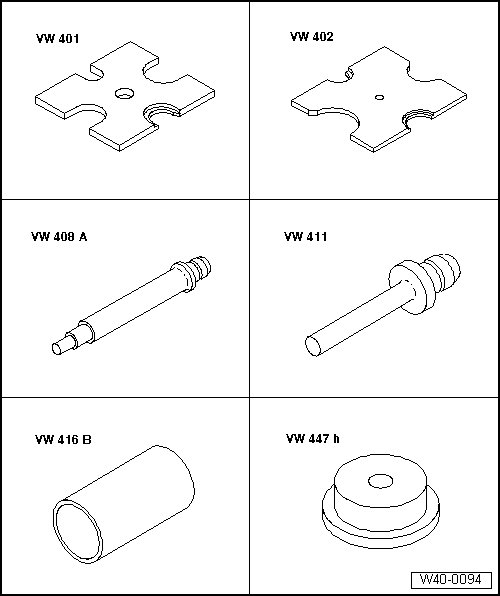

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 408 A)

• Punch (VW 411)

• Sleeve (VW 416 B)

• Thrust Pad (VW 447 H)





Special tools, testers and auxiliary items required

• Cv Joint Boot Clamp Tool (V.A.G 1682)

• Hose Clamp Pliers (V.A.G 1275)

• Torque Wrench (V.A.G 1331)

• Torque Wrench (V.A.G 1332)

• Assembly Tool (T10065)

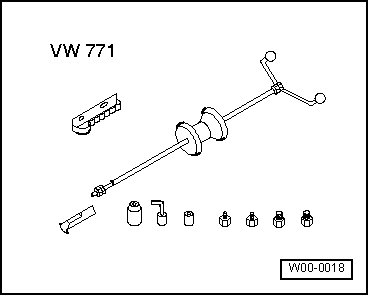

• Slide Hammer - Complete Set (VW 771)

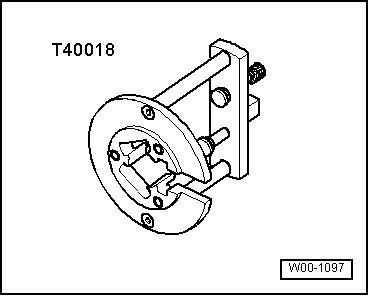

• Assembly device (T40018) for triple roller joint AAR 3300 i

• or assembly device (T40084) for triple roller joint AAR 2600 i

Special tools, testers and auxiliary items required

• Engine/Transmission Jack (V.A.G 1383 A)





• Torque Wrench (V.A.G 1410)

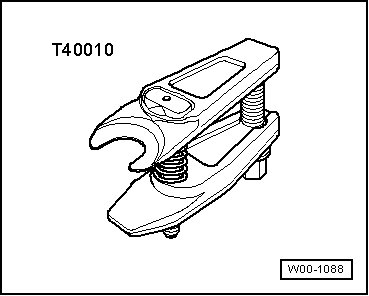

• Ball Joint Puller (T40010)





• Press Piece (VW 434)

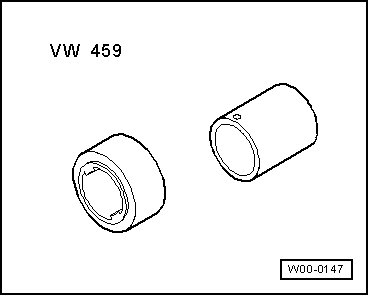

• Press Appliance (VW 459)





• Sleeve (VW 416 B)

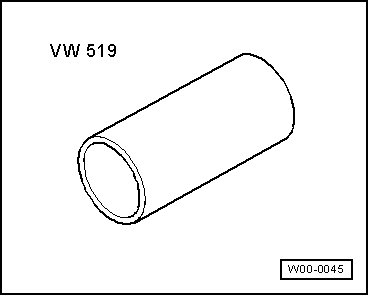

• Sleeve (VW 519)





• Press Piece (VW 473)





• Assembly Tool (3301)





• Assembly tool (3301/1)

• Assembly tool (3301/3)

• Assembly tool (3348/2)

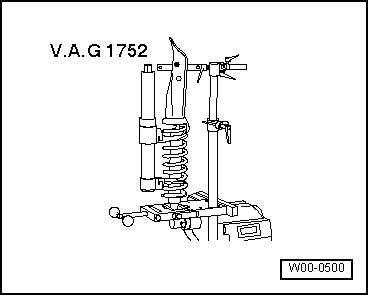

• Spring Compressor (V.A.G 1752/1)





• Spring Mounting Tool (V.A.G 1752/2)

• Spring Holder (V.A.G 1752/4)

• Spring Holder (V.A.G 1752/6)

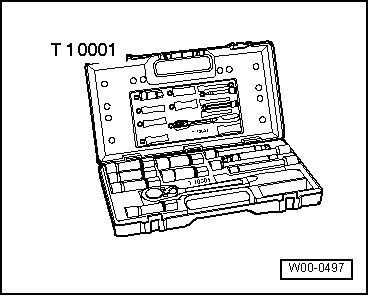

• Shock Absorber Set (T10001/3)





• Slide Hammer - Complete Set (VW 771)





• Assembly device (T40018) for triple roller joint AAR 3300 i





• or assembly device (T40084) for triple roller joint AAR 2600 i

• Shock Absorber Set (T10001/4)

• Shock Absorber Set (T10001/7)

• Shock Absorber Set (T10001/11)

• Assembly tool (3348/3)

• Assembly Tool (T40089/1)

• Separating Tool (Kukko 15-17)

• Torque Wrench (V.A.G 1331)

• Torque Wrench (V.A.G 1332)
