Cell Phone - Bluetooth(R) Inop. Using Navigation Control

91 Bluetooth phone cannot be operated using the Audi Navigation plus (RNS-E)

91 10 20

2018771/3

April 30, 2010

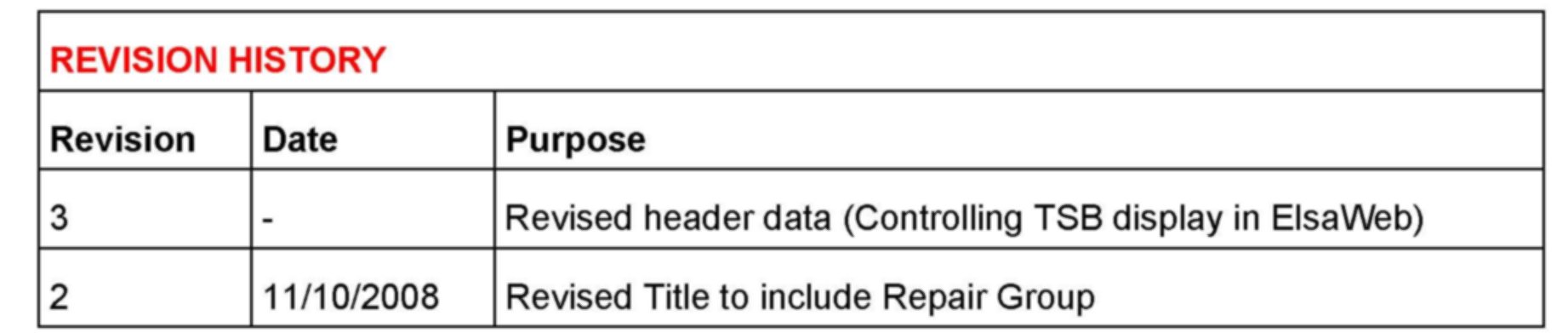

Supersedes Technical Service Bulletin Group 91 number 08-86 dated November 10, 2008 for reasons listed below.

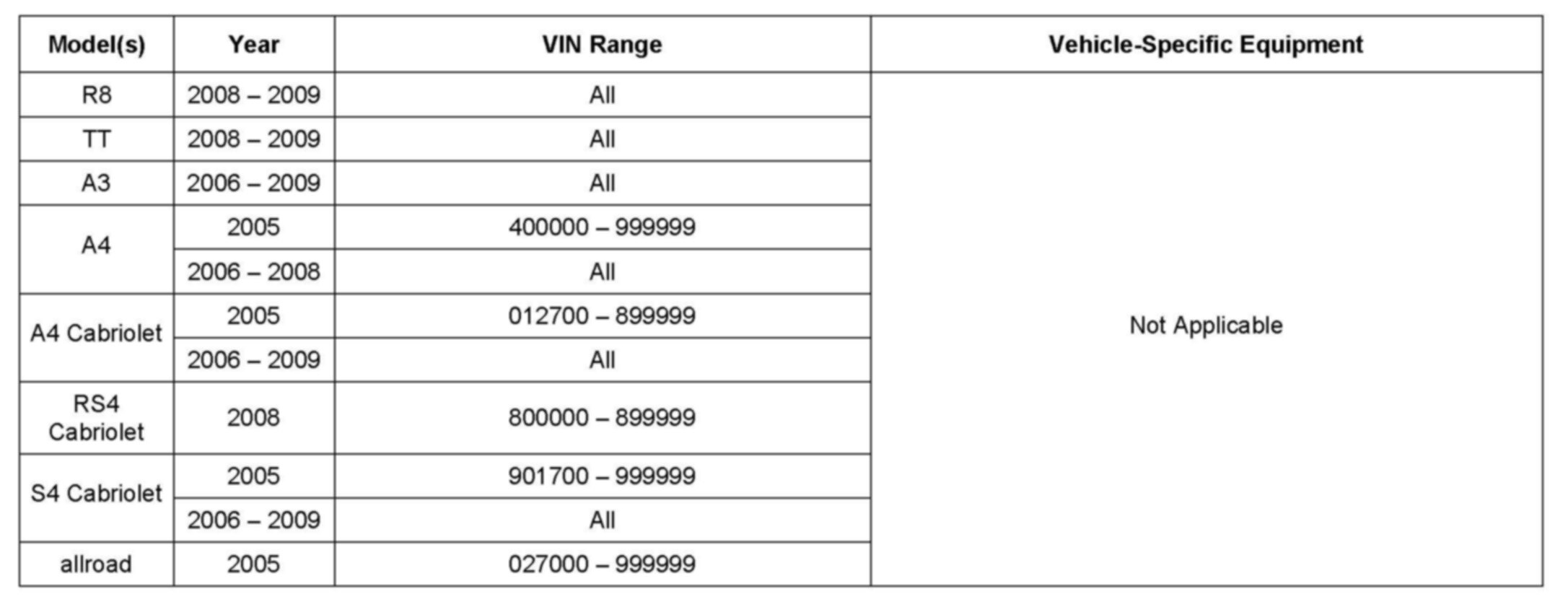

Affected Vehicles





Condition

Bluetooth phone cannot be operated using the Audi Navigation plus (RNS-E) controls. The phone will operate when using the steering wheel controls or the phone itself.

Technical Background

Bluetooth phone control unit, address word 77, is improperly coded.

Production Solution

Coding value corrected.

Service

Please check the coding of the Bluetooth phone control unit and change if necessary using GFF.

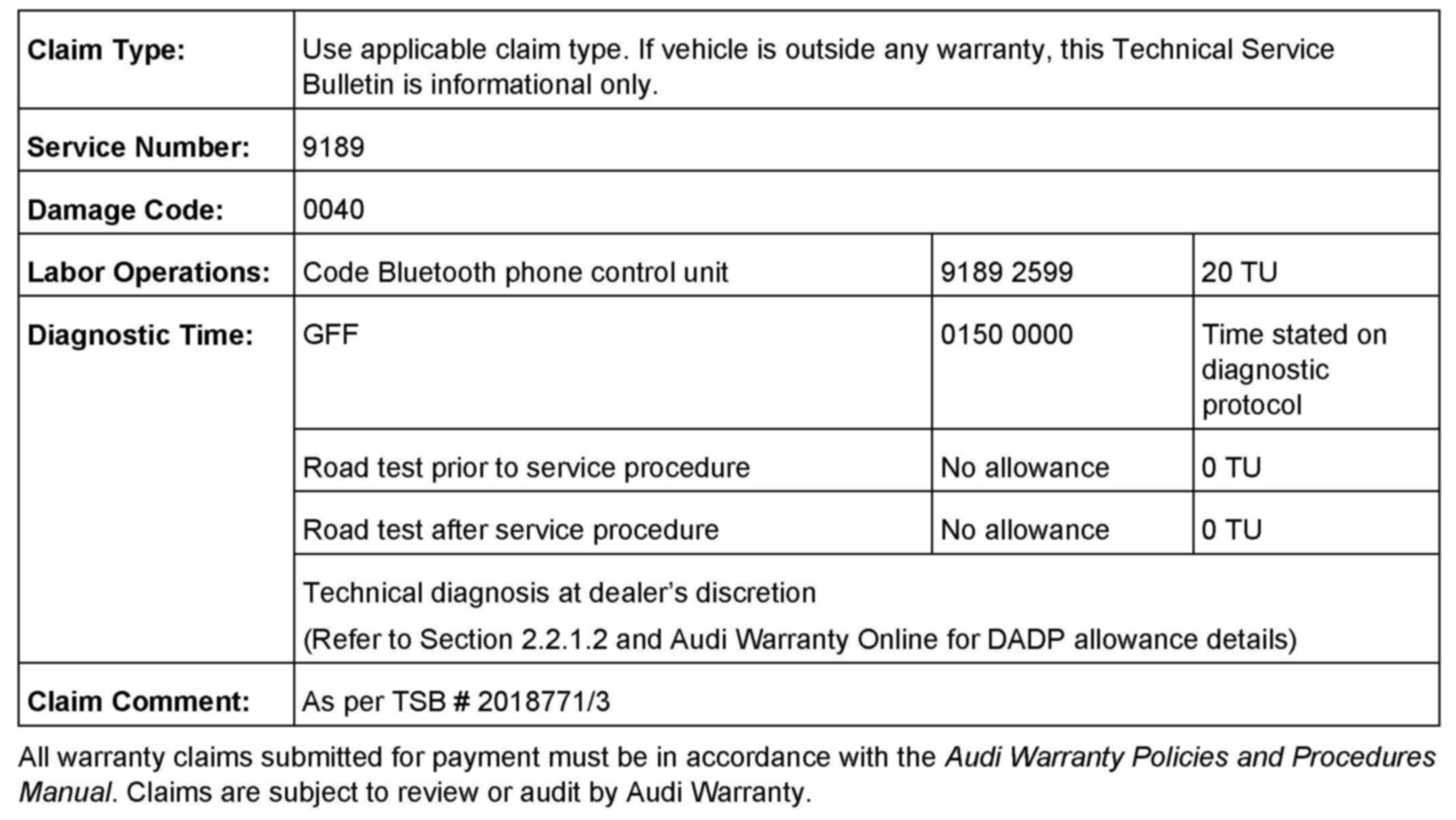

Warranty

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
