Gear Ratio

Gear Ratio

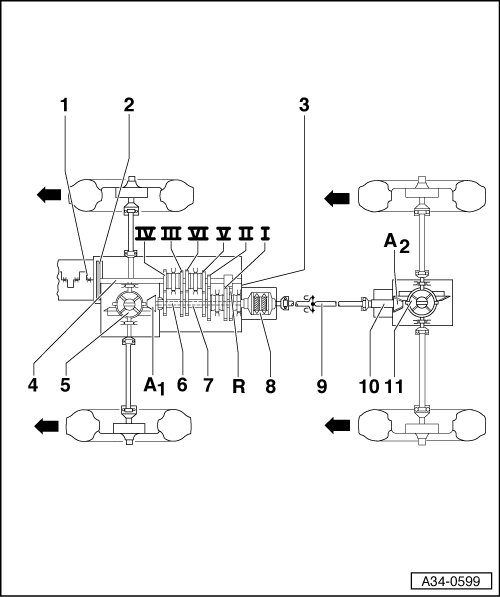

• Depicted with 6 speed manual transmission 0A3 All Wheel Drive.

• Arrows in direction of travel





I - 1st Gear

II - 2nd Gear

III - 3rd Gear

IV - 4th Gear

V - 5th Gear

VI - 6th Gear

R - Reverse Gear

A1 - Final drive-front

A2 - Rear final drive
