Identification of Rear Final Drive

Identification of rear final drive
Rear Final Drive 0AR is allocated to the following transmissions:

^ 6-speed Manual Transmission 02X

^ 6 speed Manual Transmission 0A3

^ Automatic Transmission 09E All Wheel Drive (AWD)

^ Automatic Transmission 09L All Wheel Drive (AWD)

Allocation at rear final drive





Final Drive 0AR - arrow -

Identification and date of construction - arrow 2 -





Final Drive 0AR - arrow -

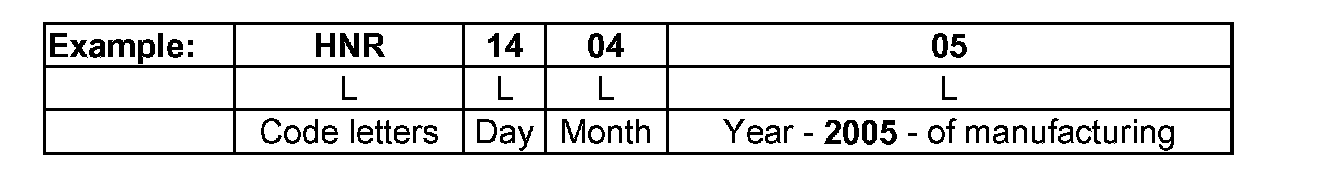

Code letters and date of manufacture of rear final drive





Further data can be ignored.

Note:
^ If rear final drive is replaced, not only the final drive code but also the PR number and the vehicle engine code must always be noted. Only in this way is a correct allocation guaranteed.
