RNS-E Navigation System With CD Drive Control Module, Connectors
RNS-E Navigation System with CD Drive Control Module, Connectors

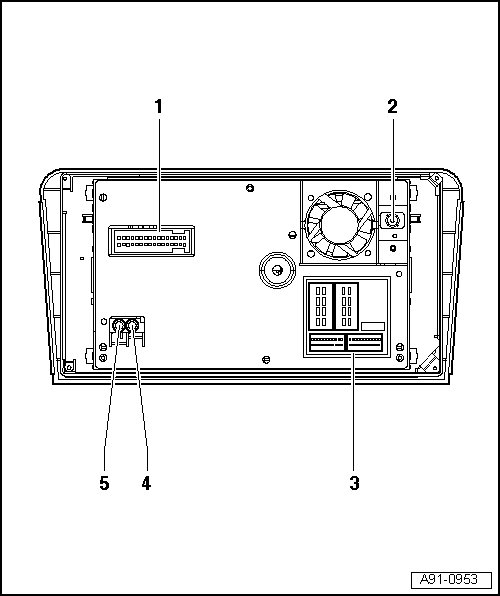

1 32-pin multi-pin connector, not used
2 Radio, Telephone, Navigation System Antenna ( R52) GPS connection (blue) (Ter/Sat/GPS/GSM)
3 Connection block with four multi-pin connectors and a fuse for unit
4 IF connection (white) to Antenna Selection Control Module (J515)/Left Antenna Module (R108)
5 HF connection (white) to Antenna Selection Control Module (J515)/Left Antenna Module (R108)
• Unlisted connector terminals are not assigned.
1 - 32-pin multi-pin connector
Connector not used
13 Right audio input
15 Video input sync.
16 Green video input
27 Screen ground
28 Audio ground
29 Left video input
30 Video ground
31 Blue video input
32 Red video input
A - Brown 8-pin multi-pin connector (T8q)
2 Right front speaker (+) (not with BOSE(R))
3 Left front speaker (+) (not with BOSE(R))
6 Right front speaker (-) (not with BOSE(R))
7 Left front speaker (-) (not with BOSE(R))
B - Blue 12-pin multi-pin connector (T12n)
2 Signal ground from CD Changer (R41)/Satellite Radio (R146)
3 Speed signal (not used)
4 Permanent positive to CD Changer (R41)
5 L-diagnostic
6 CD data out to CD Changer ( R41)
7 BOSE(R) coding to ground (only with BOSE(R))
8 Left signal from CD Changer (R41)/Satellite Radio (R146)
9 Right signal from CD Changer (R41)/Satellite Radio (R146)
10 Positive switched to CD Changer (R41)
11 CD data in from CD Changer (R41)
12 CD CLK from CD Changer ( R41)
C - Green 12-pin multi-pin connector (T12m)
1 Microphone input (-) (not used)
2 Signal from Back-Up Light Switch (F4) (not used)
3 Left front signal to Amplifier (R12) (only with BOSE(R))
4 Microphone output (-) (not used)
5 Left rear signal to Amplifier (R12)
6 NF (-) from Telephone Transceiver (R36)
7 Microphone input (+) (not used)
8 Signal ground to Radio ( R12)
9 Right front signal to Amplifier (R12) (only with BOSE(R))
10 Microphone output (+) (not used)
11 Right rear signal to Amplifier (R12)
12 NF (+) from Telephone Transceiver (R36)
D - Black 8-pin multi-pin connector D (T16j)
9 CAN-Bus High (Infotainment)
10 CAN-Bus Low (Infotainment)
11 NF mute, not used
12 Terminal 31
13 Positive switched to Amplifier (R12)
14 Anti-theft warning system ground from Comfort System Central Control Module (J393)
15 Terminal 30
16 Permanent positive (not used)
