Satellite Radio

Satellite Radio

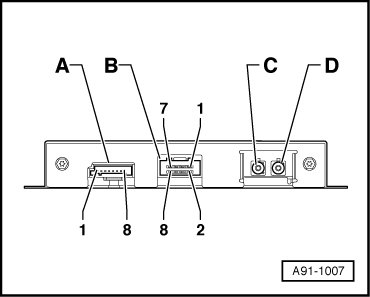

Connectors





A 8-pin connector
B 8-pin connector
C Ter connection (brown) from Radio, Telephone, Navigation System Antenna (R52) (up to 10/06)
D Sat connection (green) from Radio, Telephone, Navigation System Antenna (R52)

• Unlisted connector terminals are not assigned.

A - multi-pin connector, 8-pin





1 CAN-Bus High (Infotainment)
2 CAN-Bus Low (Infotainment)
3 Left signal from CD Changer (R41)/iPod Baseplate (R192)
4 Right signal from CD Changer (R41)/iPod Baseplate (R192)
5 Signal ground to Radio ( R)/Navigation System with CD Drive Control Module (J401)
6 Left signal to Radio (R)/Navigation System with CD Drive Control Module (J401 )
7 Right signal to Radio (R )/Navigation System with CD Drive Control Module (J401)
8 Signal ground from CD Changer (R41)/iPod Baseplate (R192)

B - Multi-pin connector, 8-pin





1 Terminal 30
2 Terminal 31
