Glove Compartment Cover

Glove Compartment Cover

Removing

- Remove glove compartment. Refer to => [ Storage Compartments and Covers ] Storage Compartments and Covers.

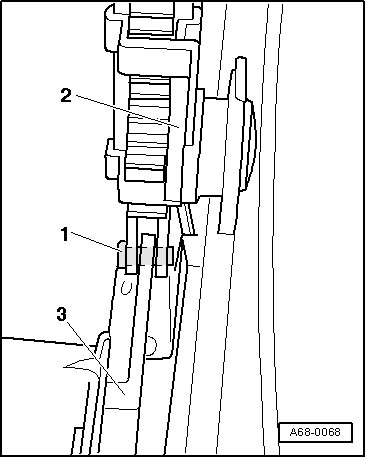

- Press pin - 1 - out in direction of - arrow - at connection between brake for glove compartment cover - 2 - and glove compartment cover - 3 -.





- Open glove compartment cover.

There are holes on the inside of the glove compartment at the left and right by the hinge.

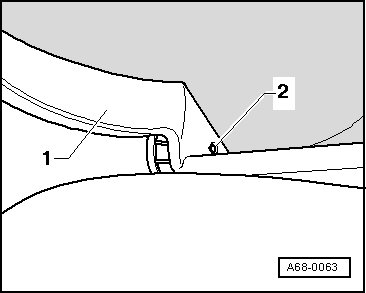

- Knock the pins - 2 - on left and right out of the glove compartment - 1 - using a drift (4 mm).

If there is no hole, proceed as follows:

- Pull pin - 2 - inward on left and right inward and remove using a pliers.

- Remove glove compartment cover.

Installing

To install, perform the steps used in removal in reverse order.
