Compass, Switching on and Off






Compass, Switching On and Off

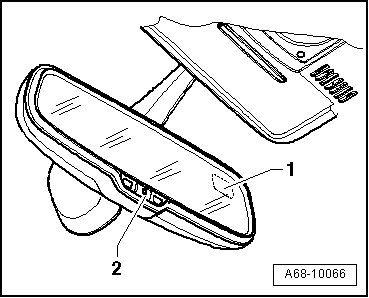

- Press the button - 2 - 3 to 6 seconds. The compass display will change from "on" to "off" and vise versa.





Compass display - 1 -"on - a direction is shown in compass display".

Compass display - 1 -"off - a direction will not be shown in compass display".
