Convertible Top

Convertible Top

• The convertible top installation is described so that opening or removing the hydraulic system is not necessary.

• All assembly work is described for the right side of the vehicle and is performed the same or in a similar way on the left side.

• When installing, ensure convertible top moves easily when closing.

• When operating convertible top, ensure front and rear windows have lowered at least 50 mm.

Removing

- Remove rear side trim.

• For easier removal of convertible top, remove convertible top compartment cover.

- Bring convertible top into center position.

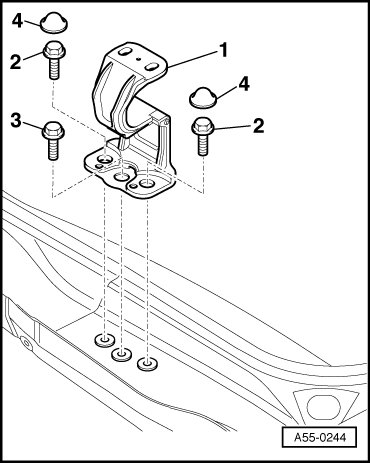

- Only remove bolts - 2 - on hinge - 1 -.





Bolt - 3 - must not be removed. That way, no installation work arises when installing convertible top compartment cover.

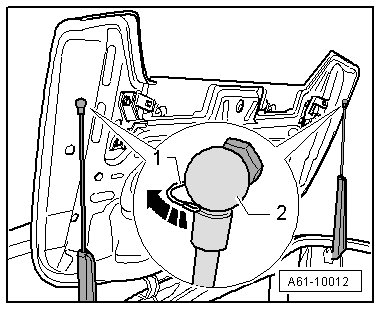

- Loosen lift cylinder securing springs - 1 - at top of convertible top compartment cover. Remove ball sockets - 2 - and place cylinder in convertible top compartment.

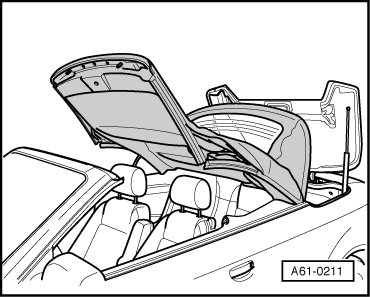

- Raise convertible top compartment cover.

CAUTION!
Protect vehicle from paint damage by using suitable protective covers and fabric reinforced adhesive tape.

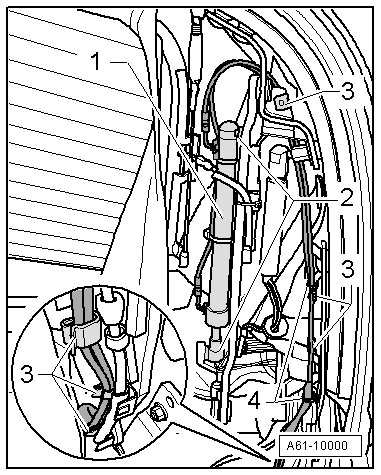

- Install bracket hydraulic cylinder - 1 - on ball sockets - 2 -.





- Unclip hydraulic lines from brackets - 3 - (Qty. 6) and loosen cable ties - 4 - (Qty. 2).

- Remove hydraulic lines and cylinders from convertible top frame and place them in convertible top compartment.

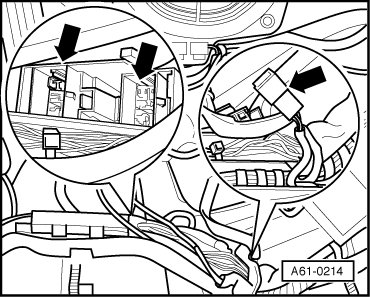

- Disconnect connectors - arrows - at right in vehicle.





- Remove convertible top cable from guides and cable ties for body wall and convertible top frame.

• All cable ties that are loosened or cut off when removing convertible top frame should be re-installed in the same places during installation.

Right side of vehicle

- Remove convertible top switch unit bolts - 1 -. The switch unit consists of Convertible Top Closed Position Switch (F202) and Convertible Top Open Position Switch (F171).





- Carefully remove convertible top switch unit from bolting point mounts.

• The convertible top should be brought to the appropriate position to remove respective convertible top switch unit bolt.

Continuation for both sides of vehicle

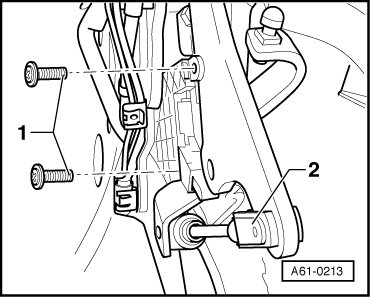

- Remove main hydraulic cylinder securing pins - 2 -.

- Loosen nuts on main hydraulic cylinder bracket until they are removed from the center and can be stored in the vehicle.

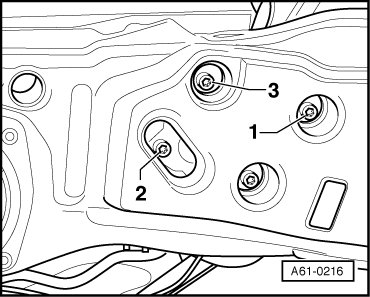

- Loosen main bracket bolts - 1 -, - 2 - and - 3 - approx. 2 turns.





• Two technicians must balance out the convertible top at the left and right.

- Remove bolts - 1 - and - 2 -.

• Bolt - 3 - remains as retainer in body wall.

- Raise convertible top approx. 20 cm and pull convertible top cable upward out of body.

- Raise convertible top toward rear over vehicle and out.

Installing

Installation is reverse of removal, noting the following:

- When inserting convertible top frame, ensure hydraulic lines and electrical wires are not damaged.

- When installing main hydraulic cylinder, ensure plastic washers are inserted in center of main hydraulic cylinder.

- Adjust door windows => [ Side Windows, Adjusting ] Adjustments.

- Adjust side window => [ Side Windows, Adjusting ] Adjustments.

- Perform function test.

- With convertible top closed, check whether front and rear windows run into seals when raised.
