Connectors, Disconnecting

Power Front Memory Seats, from November 2004

• From August 2005, the conventional wiring harness routing to the connector station under the front seat, refer to => [ Connectors, Disconnecting ] has been replaced with modular wiring routing => [ Modular Wiring Routing Assembly Overview, from August 2005 ].

• The modular wiring routing has not been implemented for all countries.

Connectors, Disconnecting

CAUTION!
• Observe safety precautions for work on airbags.

• Before handling airbag units (e.g. disconnecting electrical connector), the person handling it must "discharge static electricity". This can be done by touching door striker, for example.

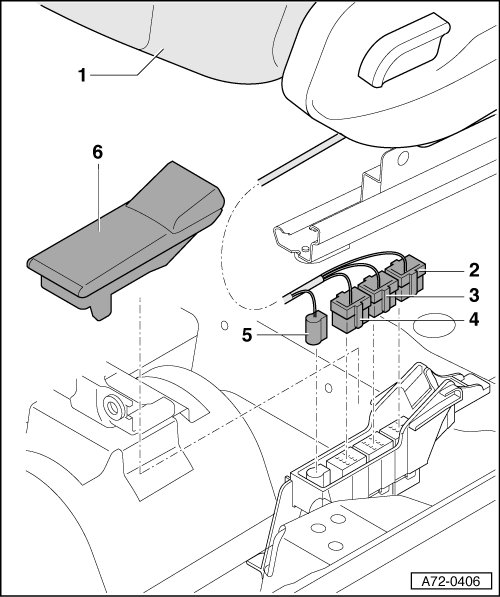

1 Front Seat

2 Belt Buckle Sensor Connector (Black)

3 Seat Heating Connector (Green)

4 Current Supply Connector (Red)

5 Airbag connector (Yellow)

6 Panel or Cover

• for connector station

• Removing

- Tip front seat - 1 - back.

Without modular wiring routing, through August 2005

- Remove coupling station cover - 6 - upward.

With modular wiring routing, from August 2005

- Remove connector station cover => [ Modular Wiring Routing with Corrugated Tube on Front Seat ] Standard Front Seat, From November 2004.

All vehicles

- Press in tab on airbag connector - 5 - on tunnel side and disconnect airbag connector - 5 -.

- Press in tab on connector for voltage supply - 4 - on tunnel side and disconnect connector for voltage supply - 4 -.

- Press in tab on airbag connector for heated seat - 3 - on tunnel side and disconnect connector for heated seat - 3 -.

- for vehicles with seatbelt fasten sensor: Press in tab on connector for seatbelt fasten sensor - 2 - on tunnel side and disconnect connector for seatbelt fasten sensor - 2 -.

- Connect airbag adapter. Refer to => [ Airbag Adapter, Connecting ].

• Installing

To install, perform the steps used in removal in reverse order.
