Seat Cushion Extension, Removing and Installing (Sports Seat)

Seat Cushion Extension, Removing And Installing (sports Seat)

Special tools, testers and auxiliary items required







- Engine and transmission holder VAS 6095







- Fixture for seat repair VAS 6136

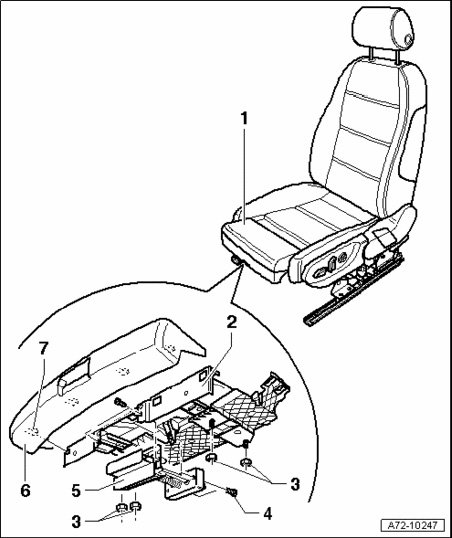

1 - Seat cushion extension

- Removal
- Remove seat.
- Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.
- Attach the front seat to the fixture for seat repair VAS 6136.
- Remove drawer or storage compartment:
- Drawer, removing and installing (through 06.06).
- Storage compartment, removing and installing (from 06.06).
- Detach cover and cushion from seat pan.
- Detach seat cushion extension from cover and cushion.

- Installing
Installation is reverse of removal.
2 - Seat surface extension base plate
3 - Nut
- 35 Nm
- Qty. 4
4 - Screw
- Qty. 4
5 - Grip
- Removal
- Remove bolts - 4 - (Qty. 4).
- Remove handle - 5 -.
- Installing
Installation is reverse of removal.
6 - Trim
- Removal
- Remove clips - 7 - (Qty. 4) on trim - 6 -.
- Installing
Installation is reverse of removal.
7 - Clips
- Qty. 4
