Rear Seat Backrest Outer Anchor






Rear Seat Backrest Outer Anchor

Removing

- Remove left and right rear backrests. Refer to => [ Left 1/3 Backrest ] Left 1/3 Backrest.

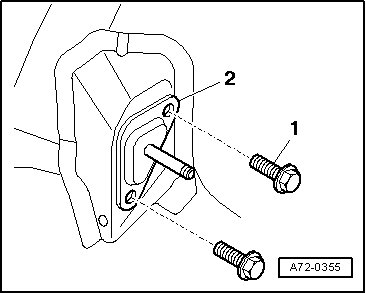

- Remove bolts - 1 - (Qty. 2) from outer fitting - 2 -.





Tightening specification: 16 Nm

Installing

To install, perform the steps used in removal in reverse order.
