Diagram 85/2 (Tracks 1-14)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

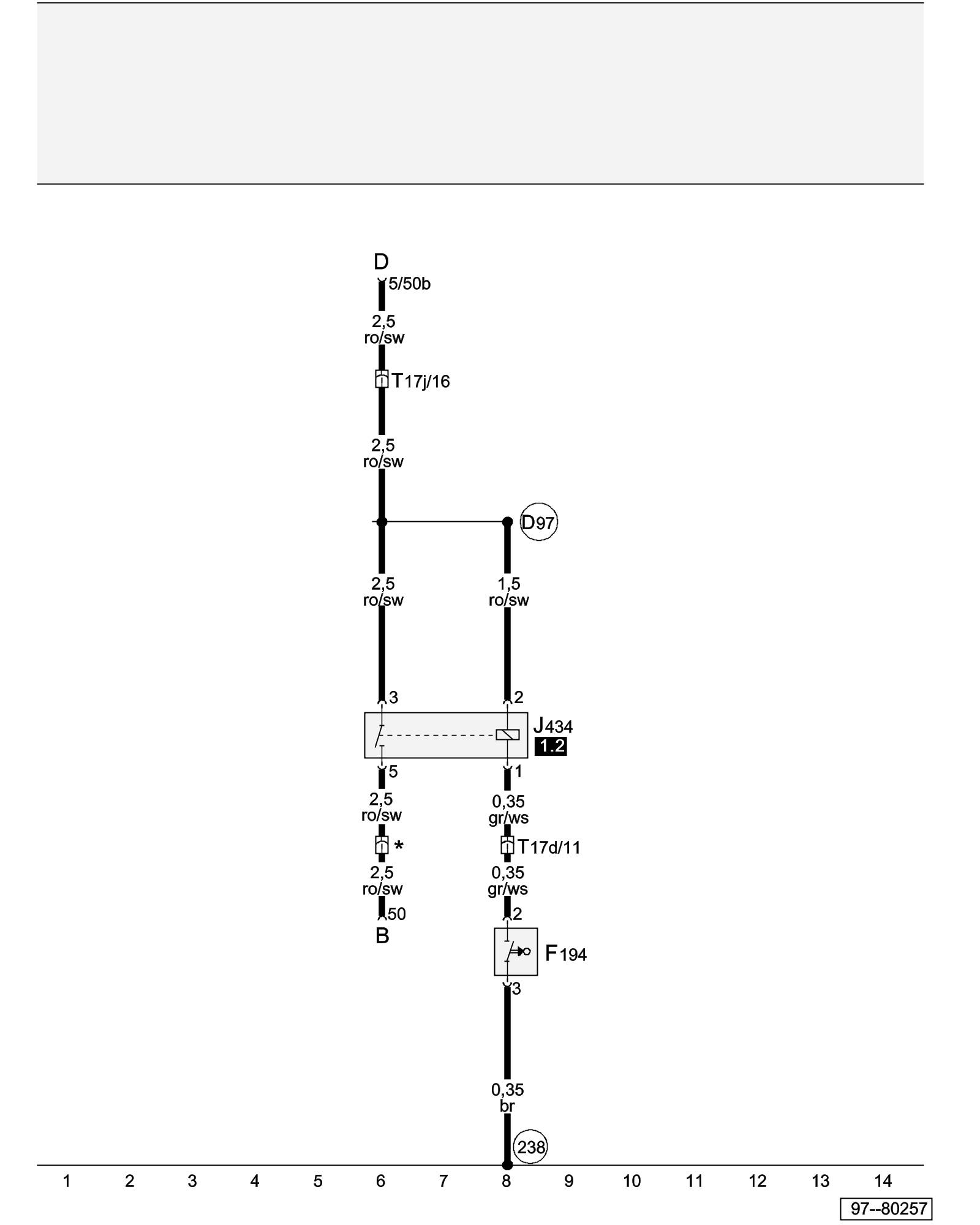

Starter, Starter Lock/Clutch Pedal Switch Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

B - Starter

D - Ignition/Starter Switch

F194 - Clutch Pedal Starter Interlock Switch Manual Transmission

J434 - Starter Lock/Clutch Pedal Switch Relay

T17d - 17-Pin Connector, red, connector station E-box, plenum chamber

T17j - 17-Pin Connector, brown, connector station E-box, plenum chamber

(238) - Ground Connection 1 (in interior wiring harness))

(D97) - Connection (50) (in engine compartment wiring harness), right

* - => Current wiring diagram for engine
