Diagram 94/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


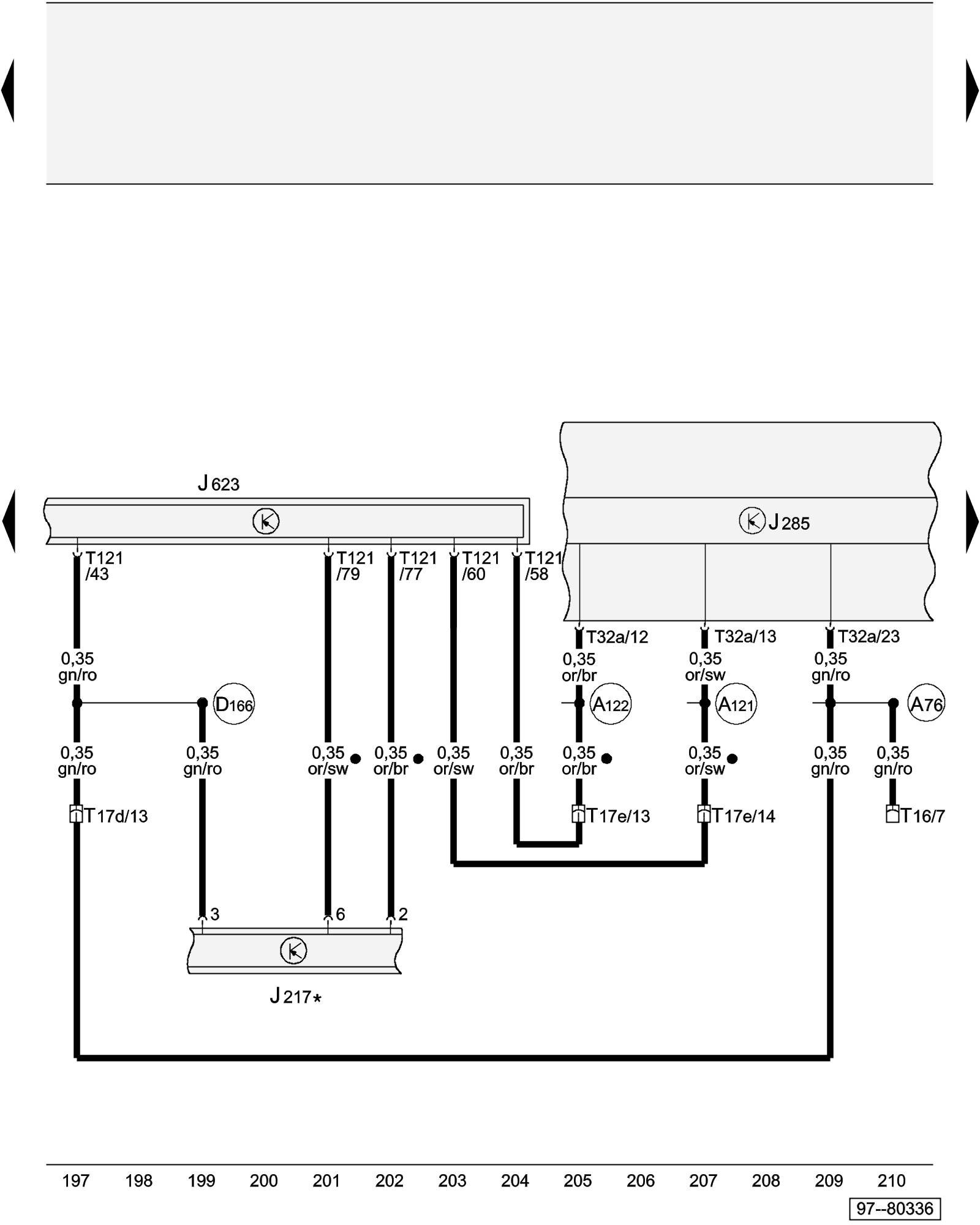

Engine Control Module (ECM), Transmission Control Module (TCM), Instrument Cluster Control Module, CAN-Bus (Data bus)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J217 - Transmission Control Module (TCM)

J285 - Instrument Cluster Control Module

J623 - Engine Control Module (ECM)

T16 - 16-Pin Connector, black, Data Link Connector (DLC), under instrument panel, left

T17d - 17-Pin Connector, red, connector station E-box, plenum chamber

T17e - 17-Pin Connector, white, connector station E-box, plenum chamber

T32a - 32-Pin Connector, green, on instrument panel insert

T121 - 121-Pin Connector, black

(A76) - Wire connection (K-diagnosis wire), in instrument panel wiring harness

(A121) - Wire connection (High-bus), in instrument panel wiring harness

(A122) - Wire connection (Low-bus), in instrument panel wiring harness

(D166) - K-Diagnosis Connection (in engine wiring harness)

* - Automatic transmission (AG6) only

^ - CAN-Bus (Data bus)

Previous Diagram 94/15 (Tracks 183-196)

Next Diagram 94/17 (Tracks 211-224)
