Diagram 68/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Light Switch, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

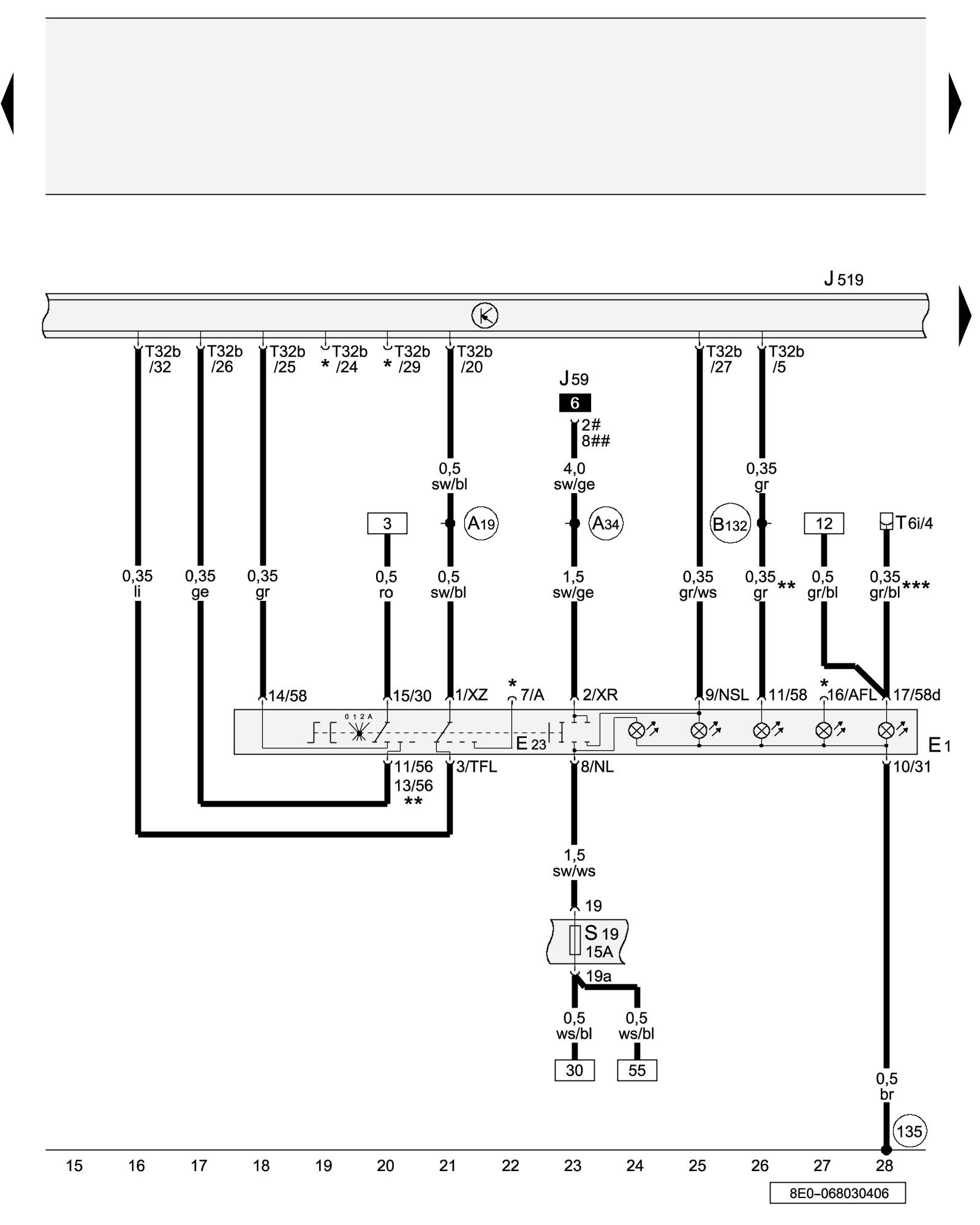

E1 - Light Switch

E23 - Fog Lamp Switch

J59 - Load Reduction Relay

J519 - Vehicle Electrical System Control Module

S19 - Fuse in fuse holder/relay panel

T6i - 6-Pin Connector, brown, behind side trim, rear left

T32b - 32-Pin Connector, grey, on vehicle Electrical System Control Module

(135) - Ground Connection 2 (in instrument panel wiring harness)

(A19) - Connection (58d) (in instrument panel wiring harness)

(A34) - Connection (75x) (in instrument panel wiring harness)

(B132) - License Plate Light Connection (in interior wiring harness)

* - -with automatic driving light control / interior ambient illumination => applicable wiring diagram

** - from January 2005

*** - for avant => applicable avant rear wiring diagram

# - up to 2006 m. y.

## - from 2007 m. y.

Previous Diagram 68/2 (Tracks 1-14)

Next Diagram 68/4 (Tracks 29-42)
