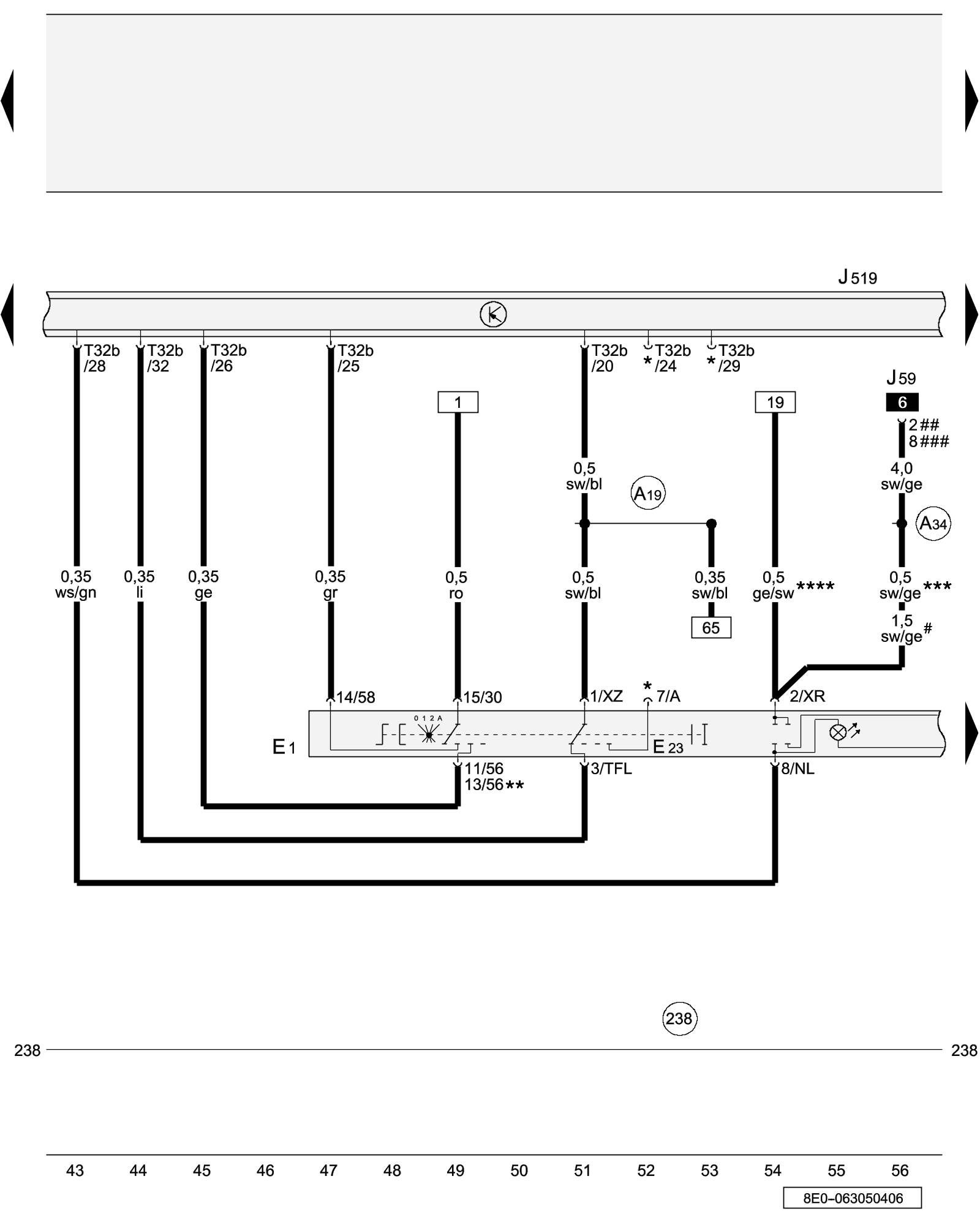

Diagram 63/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Light Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

E23 - Fog Lamp Switch

J59 - Load Reduction Relay

J519 - Vehicle Electrical System Control Module

T32b - 32-Pin Connector, grey, on vehicle Electrical System Control Module

(238) - Ground Connection 1 (in passenger compartment wiring harness)

(A19) - Connection (58d) (in instrument panel wiring harness)

(A34) - Connection (75x) (in instrument panel wiring harness)

* - with Light Sensor Package (coming/leaving home) only, => applicable wiring diagram

** - from January 2005

*** - not applicable to US/CDN

**** - applicable to US/CDN only

# - not applicable to US/CDN

## - applicable up to 2006 m. y.

### - applicable from 2007 m. y.
