Low Beam Headlamp, Replacing Bulb

Halogen Headlamps

CAUTION!
Before beginning repairs on the electrical system:

• Obtain the anti-theft radio security code.

• Switch the ignition off.

• Disconnect the battery Ground (GND) strap.

• After reconnecting vehicle battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Information and/or Owner's Manual.

• Steps after reconnecting voltage supply => Battery.

Low Beam Headlamp, Replacing Bulb

Removing

- Remove headlamp => [ Halogen Headlamps ].

- Remove housing cover from headlamp housing.

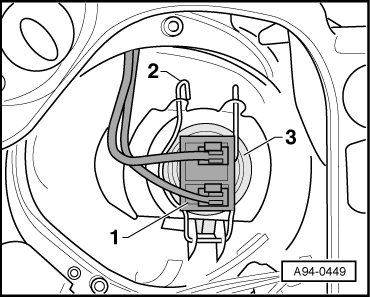

- Disconnect harness connector - 1 - at low beam bulb.





- Disengage wire clamp - 2 - and remove bulb - 3 - from housing.

Installing

Installation is reverse of removal, paying attention to the following:

- Insert new bulb into housing, do not touch glass portion with bare hands.

- Secure bulb using wire clamp.

- Reconnect harness connector and close housing cover.

- Secure housing cover using wire clamp.
