Ambient Illumination Deactivation Switch

Ambient Illumination Deactivation Switch

Where equipped, the Ambient Illumination Deactivation Switch (E491) controls the "coming home " and " leaving home" lighting function.

Additional information => Owner's Manual

Removing

- Remove light switch => [ Light Switch ].

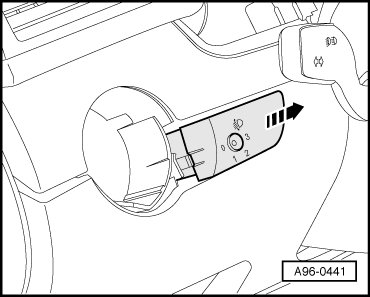

- Reach through opening for light switch and press the switch unit out of the switch housing in direction of - arrow -.





- Disconnect electrical connection.

Installing

Install in reverse order of removal, noting the following:

- Install light switch => [ Light Switch ].
