Ignition Coils With Power Output Stage, Checking

Ignition Coils with Power Output Stage, Checking

The following procedure is used to diagnose all Ignition Coils with Power Output Stage.

Special tools, testers and auxiliary items required

• Multimeter.

• Diode test lamp.

• Wiring diagram.

Test requirements

• The Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324, N325, N326) fuses OK.





• The Motronic Engine Control Module (ECM) Power Supply Relay (J271) OK.

• The Engine Speed (RPM) Sensor (G28) OK,.

• The Camshaft Position (CMP) Sensor (G40)OK, => [ Camshaft Position Sensors, Checking ] Camshaft Position Sensors, Checking.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position " P" or "N".

• A/C switched off.

• Ground (GND) connections between engine/transmission/chassis OK.

• Ignition switched off.

Procedure

- Remove the engine cover with air filter Refer to Fuel Injection and Ignition Repair Information.

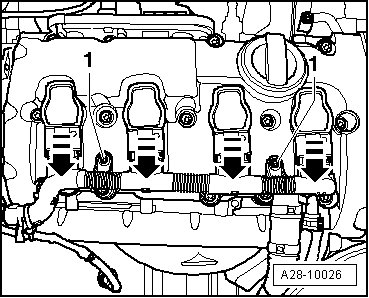

- Remove the Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324, N325, N326) electrical harness screws - 1 -.





- Disconnect the Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324, N325, N326) electrical harness connectors from the Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324, N325, N326).

Checking voltage supply

- Switch the ignition on.

- Using a Multimeter, check the Ignition Coil electrical harness connector terminals 1 to 4 for voltage.





Specified value: battery voltage.Repeat for each ignition coil connector.

- Switch the ignition off.

If the specified value was not obtained:

- Check the Ignition Coil electrical harness connector terminal 1 to the Motronic Engine Control Module (ECM) Power Supply Relay (J271 ) terminal 87 for an open circuit.

Specified value: 1.5 ohms Max.

If the specified value was not obtained:

- Check the wiring connection for an open circuit, short circuit to Battery (+) or Ground (GND).

- Check the wiring connection for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specified values were obtained:

Checking activation

CAUTION!
Do not touch the Ignition Coils connecting parts or adapter cables during the following test.

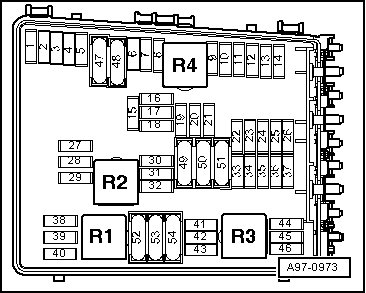

- Disable the power supply to the Fuel Injectors ( N70, N127, N291, N292, N323, N324, N325, N326) by removing Fuse 29 (on fuse panel B) from the fuse holder SB29, in the E-box, plenum chamber.





- Using a diode test lamp, check the Ignition Coil electrical harness connector terminals 2 to 3 for voltage.





- Operate the starter.

The LED should flicker.

- Switch the ignition off.

If the LED flickers and the voltage was OK:

- Replace the faulty Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324,N324,N325,N326) Refer to Fuel Injection and Ignition Repair Information.

If the LED does not flicker:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box. Refer to Fuel Injection and Ignition Repair Information.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Motronic Engine Control Module (ECM) ( J623). Refer to => [ Engine Control Module, Replacing ] Service and Repair.

- Using a Multimeter, Check the Ignition Coil electrical harness connector to the Motronic Engine Control Module (ECM) (J623) electrical harness connector T60 for an open circuit.









Specified value: 1.5 ohms Max.

If the specified value was not obtained:

- Check the wiring connection for an open circuit, short circuit to Battery (+) or Ground (GND).

- Check the wiring connection for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specified values were obtained:

- Replace Motronic Engine Control Module (ECM) ( J623).

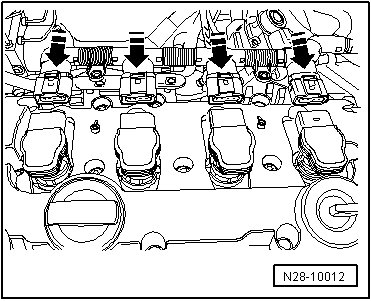

- Connect the Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324, N325, N326) electrical harness connectors - arrows - to the Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324, NM325, N326).





- Install the Ignition Coils with Power Output Stage (N70, N127, N291, N292, N323, N324, N325, N326) electrical harness screws - 1 -.





- Install the engine cover with air filter Refer to Fuel Injection and Ignition Repair Information.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

- End of diagnosis.
