09LA Transmission

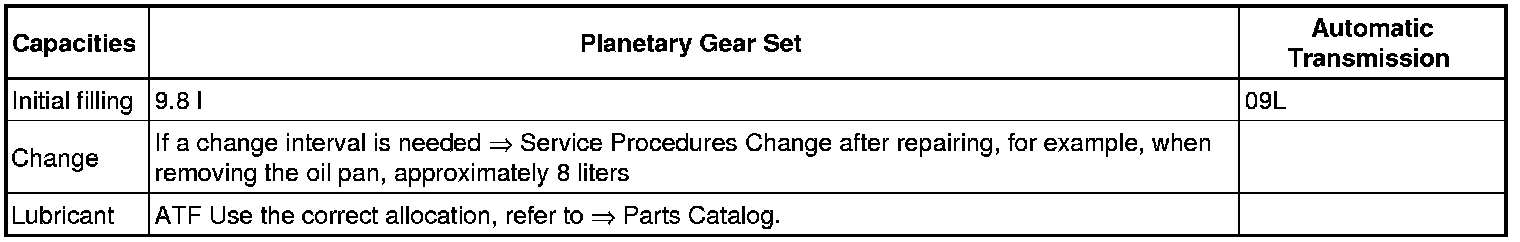

Planetary Transmission Capacities





CAUTION!
There is a risk of damaging the transmission.

• Various types of ATF are available for this transmission. These are allocated to the transmission code letters and/or the transmission number.

• Only use the ATF available as a replacement part for the planetary gearing in automatic transmission 09L.

• Other oils can cause malfunctions or transmission failure.

• Follow the allocation.

- Check ATF level in planetary gearing. Refer to => [ ATF, Checking Level and Correcting ] ATF, Checking Level and Correcting.
